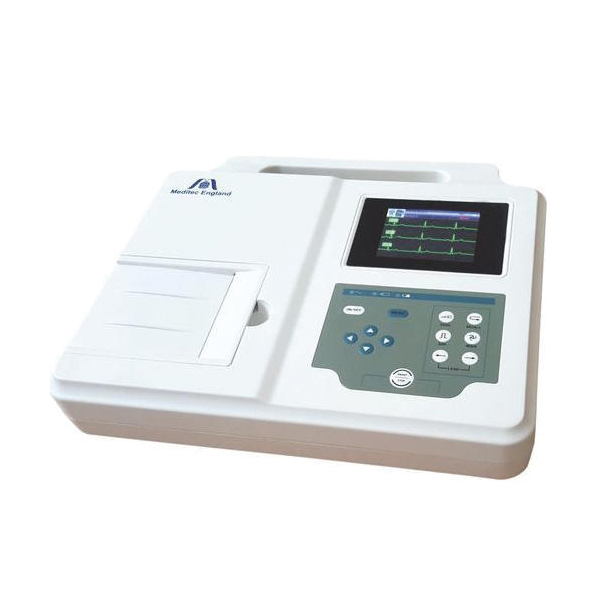

Meditec England Three Channel ECG Machine
MPIN: MP40779
Sign in to view priceAsk for Quote
Product Details:
Minimum Order Quantity: 01 Unit
Type: Digital, Portable, Automatic
Brand: Meditec England
Time Constant: Less Than 3s
Weight: 3kg (with battery)
Application: Hospital
Acquisition Mode: 12-leads ECG simultaneously
Dimension: 32mm x 28mm x 65mm
Display: 320 x 240 pixels,3.3 Inch LCD
Noise Level: Greater Than 15uVp-p
Emg Filter: 25Hz/35Hz/45Hz/OFF
Sensitivity: 2.5,5,10,20mm/mV
Input Circuit: Defibrillator protection built-in
Lead: Standard 12 leads
Dfg Filter: 0.05/0.1/0.2/0.5Hz
Ac Filter: 50Hz/60Hz/OFF
Input Impedance: Greater Than 0.05mA
A and D Converter: 12 bits
Measurement range: +/-5m Vpp
Frequency Response: 0.05 to 150Hz
Calibrating Voltage: 1mV +/- 2%
Anti Baseline Drift: Automatic
Lowpass Filter: 150Hz/100Hz/70Hz
Recorder: Thermal Printer
Paper Style: Rolled or folded
Record Paper: 80mm x 20mm
Communication Interface: RS232,USB Socket
