Product Details:
Resolution: 1280×1024 dpi
Brand: Allied Medical

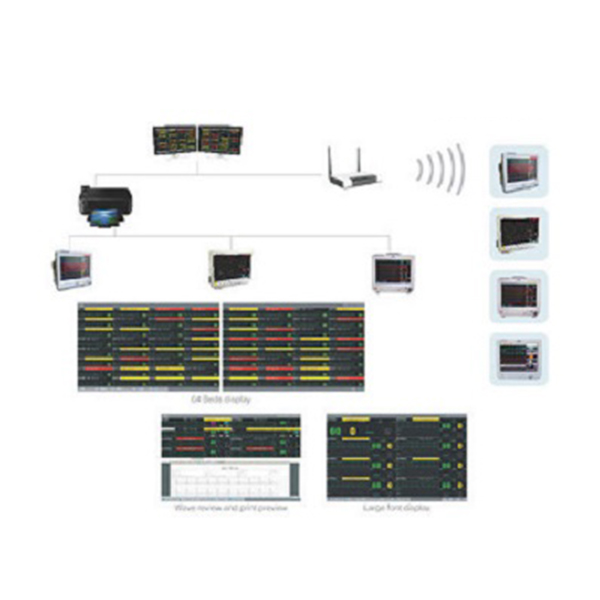

Connection Mode: Complete solution for LAN,wireless LAN,and mixture networking
Display: Digital 17/19/21 Inch TFT screen
Input Frequency: 50Hz +/- 1Hz
Input Voltage: AC 100V-240V
Language: English
Print: HP printer
Processor: Dual Core
Recorder: External thermal array,Real-time recording,review recording and historical,Reports recording
Waveform Parameter: etc HR,ECG,PR,RESP,TEMP,ST,etc.,SpO,NIBP,EtCO,RR
Specification
Features:
- Standard Network Interface: TCP/IP central monitoring system, be able to observe full vital signs information of the patient

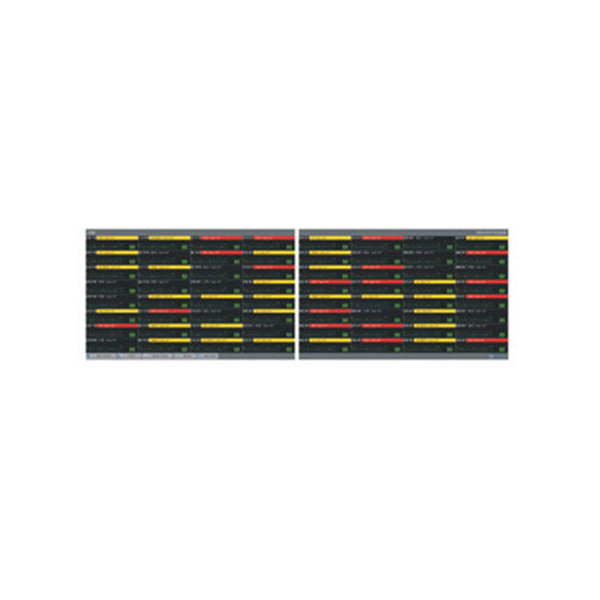

- Full Disclosure Waveform Observation: Large screen display, be able to observe 16 bedside monitors waveforms simultaneously. Selectable Dual-screen display
.
- Bi-directional Communication: Unique Bi-directional communication function realize the mutual control of central monitor and bedside monitors
- Large Storage Capacity:720-hour full disclosure waveform review, 1240-hour trend graph review, 1000 alarm records review. 50,000 patient historical data. All the information can be stored in the disk
- Data File Review: Large storage capacity of full monitoring information for easy review, analysis, and statistics
- Dual Screen: Support various data display methods and various windows layout. It can display the waveform and numeric information of ECG, SpO2 , RESP, NIBP, IBP, CO2 , etc.
- The key bedside monitoring function provides more detail information to the doctor.
- Operating System: User-friendly central monitoring software built on Windows platform. Advanced information integration technology to realize the concentration management of all parameters. Full digital transmission to ensure the communication accurate and reliable.
- Stable Internet Connection: Standard configuration for 8 bedside monitors, support maximum of 128 units
Data:
- 720-hour full disclosure waveform review
- 1240-hour trend graphic review
- 10,000 alarm record review
- 50,000 historical patient records
Alarm:
- Alarms: High and low limits alarm
- Arrhythmia alarm
- Audible and visual alarm
Bedside Monitors:
- Support maximum 128 bedside monitors
- Display maximum 32 patient”s information
- Key monitoring interface, display 6 waveforms
- Intellectualized Bi-directional Communication
