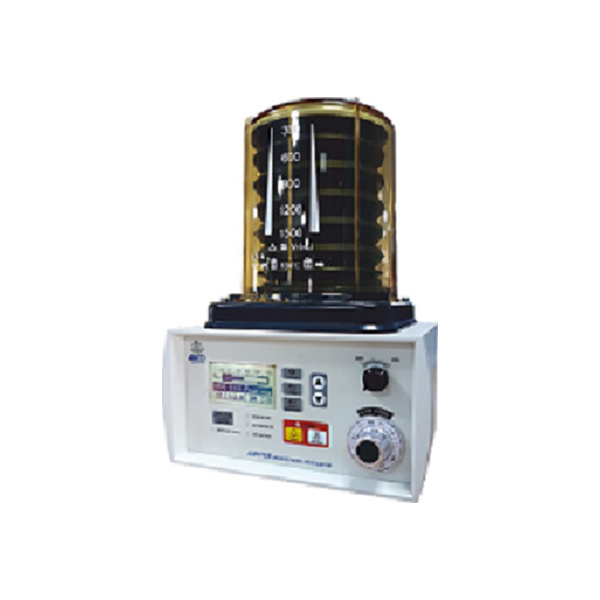

Model Name/Number: A-JUP AV
Modes Of Ventilation: CMV(VC)
Inspiratory time: 0.1-1.0 L/Sec
Brand: Allied Medical
Ie Ratio: 41-110
Total Volume Adult: 100ml-1500ml
Low Battery: Battery life less than 15 min
Alarm mute: 120 Sec except for Low Supply Gas Pressure
Paediatric: 30 ml 250 ml
Inspiratory Gas Flow: 0.1 0.9 L/Sec
Adjustable Pressure Relief: 20~ 80 cmH2O
Driving Gas: Oxygen / Air
Supply Pressure: 280 700 kPa (45 – 100 psi)
Battery life for alarms: 60 days of regular use
Respiratory Manometer Gauge: (-)20 100 cmH2O pressure
Packing Box: L410 x W380 x H500
Weight Incl Box: 6Kg. approx.
Adult Bellows: 300 – 1500 ml
Paediatric Bellows: 30 – 250 ml
Low Airway Pressure Less Than 5cmH2O for more than 15 Sec (Apnea)
High Airway Pressure Grater Than 65 cm H2O
Low Supply Gas Pressure Less Than 250 Kpa. Separate Pneumatic indicator for low supply gas pressure
- Meditec 2200 ventilator is a pneumatically driven ventilator. With easy controls like Inspiratory & expiratory time, Inspiratory Flow and Pressure Limit – It provides an accurate and precise flow to the patient while delivering Anaesthesia. It is an easy to use ventilator with integrated alarms for all the vital parameters.
- It is provided with ascending bellow unit which is easily detachable for cleaning. It can be used in closed circuit anesthesia and also to drive a Bains circuit.
- Meditec 2200 can be mounted on side bracket pole unit or on top of Anaesthesia machine. Bellows Assembly can also be mounted separately if required.
- Meditec 2200 Anaesthesia Ventilator is an electronic time cycled compact ventilator with integrated patient alarms for improved safety. It offers easy handling, comprehensive patient care and superior performance with enhanced efficiency and safety.
