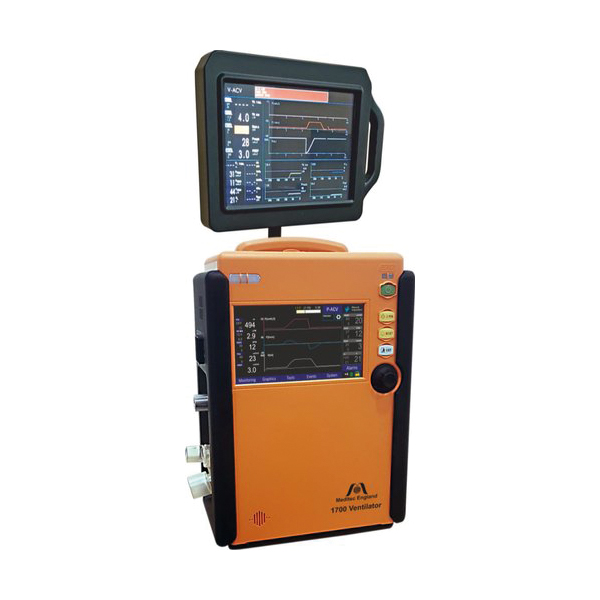

Meditec England Portable ICU Ventilator

Product Details:

Inspiratory time: 0.1 – 24 sec

Trigger Sensitivity: Pressure trigger OFF,0.5 to 20 cm H2O,Flow trigger OFF,0.5 to 20 lpm

Weight: 7.8 kgs. (main unit with battery)

Tidal Volume: 50 – 2500 ml

Inspiratory Pressure: 5 – 80 cm H2O (Peep+Pins less than 100cm H2O)

Respiratory Rate: 2 – 80 bpm

Operation Temperature: 10 – 40 Degree C

Relative Humidity: 10 – 85%

Brand: Meditec England

Display Screen: 8 Inch Screen with Touch Control & Rotary Knob

Parameters: Set Parameters / Measured Parameters / Alarm Status / IE Ratio

Waveform: Pressure-Time,Flow-Time,Volume-Time

Loop: Pressure-Volume,Flow-Volume,Minute Volume

Modes: PACV,PSIMV,VACV,VSIMV,AUTO (Emergency Quick Start),Spont+,PRVC

Pressure support: 0 – 60 cm H2O (PEEP+PSV less than 100cm H2O)

Rise Time in PCV: Fast,Medium,Slow (0 – 2 sec)

Apnea Time: 2 – 60 sec

Apnea BackUp Type: PACV,VACV Mode

Trend: 72 hrs

Enable inhalation trigger En sense: 10 – 80% of Inhalated volume

Exhalation trigger Sensitivity Ex trig: 10 – 80% of peak flow in exhalation

Inspiratory Pressure limit: 5 – 80 cm H2O in PRVC

Suitable Body Weight: Volume Mode 10 – 150 kg,Pressure mode 1 – 150 kg

Nebulizer time: 10 – 180 mins (3 Hours)

Altitude Volume Compensated: (-)100 – 5000 [m]

Room Air Temperature: 0 – 50 Degree C

Power: AC 100 – 230v 50 – 60 Hz,DC 10.8v – 8.8A

Power Backup: 180 mins. internal battery backup

PEEP and CPAP: 0 – 50 cm H2O

Dimensions: 250mm x 156mm x 371mm (W x D x H)

The Portable ICU Ventilator is designed to work in a highly versatile environment. Whether you need Invasive or Non-Invasive ventilation the Meditec 1700 delivers.

Power packed with a range of Ventilation modes to suit individual preferences the Portable ICU Ventilator is ideal for use in an ICU, Intra-Hospital transport, Air, and Ground transport.

Simplicity, In-built air supply, versatility and affordable cost of ownership make Meditec 1700 the obvious choice.

Specification

Features:

5.6Invasive as well as Non-Invasive Ventilation

5.6Pressure & Flow waveforms with Trends Facility

5.6Altitude compensation

5.6FiO2 Measurement

5.6Suitable for both dual as well as single limb breathing circuits

5.6Patient History storage capability

5.6Automatic Parameters adjustment of the patient according to Height & Weight

5.6Battery Backup: 4 Hrs

5.6Extended battery backup (optional): 4 Hrs

5.6Touchscreen, as well as the knob, operated

5.6Shock Resistant (Drop Test compliant)

5.6Nebulizer: 10 180 minutes

5.6Inspiration hold: Measures patient lung compliance and resistance, Elasticity, Time constant

5.6Key lock: Key & LCD Touch Screen Lock

5.6Waveform freeze: Freezes the waveform

5.6Alarm silence: Mutes audible alarms for 2 minutes

5.6Alarm Reset: Clears visual indicators and messages

Optional:

EtCO2 Measurement

SpO2 Measurement

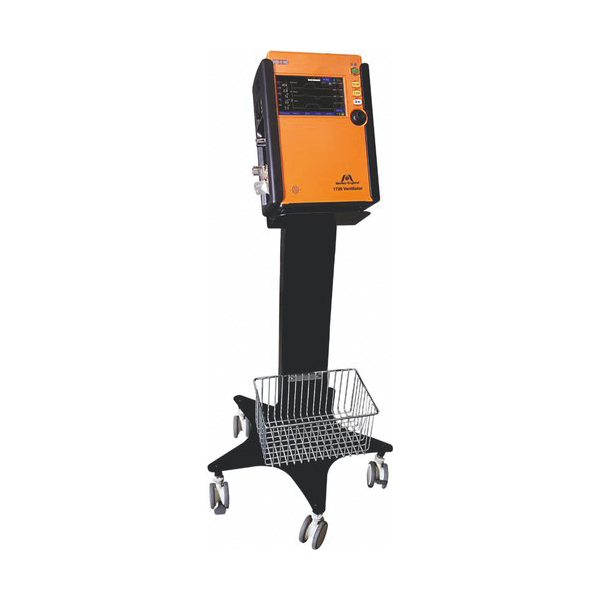

Trolley
