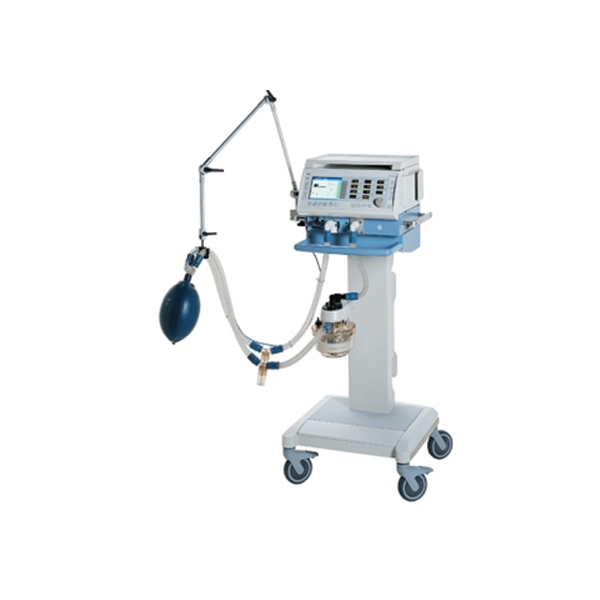

Drager Evita 2 Dura ICU Ventilator

Product Details:

• IPPV, IPPVAssist (CMV, CMVAssist)
• SIMV, SIMVASB (SIMV, SIMV/Psupp)
• MMV, MMVASB (MMV, MMV/Psupp)
• BIPAP1), BIPAP1)ASB, BIPAP1)Assist (PCV+, PCV+/Psupp, PCV+Assist)
• CPAP, CPAPASB (CPAP, CPAP/Psupp)
• APRV (optional)
• ILV (optional)
• Enhancements
• AutoFlow™ – Automatic adaptation of inspiratory flow in volume controlled modes
• ATC™ – Automatic Tube Compensation (optional)
• IV – Mask Ventilation (optional)
• Adult, Pediatric and Neonatal mode
• Ventilation frequency (f): 0 to 100 /min, 0 to150 /min (Neonatal)
• Tidal volume (VT) (BTPS): §0.1 to 2.0 L (Adult) §0.02 to 0.3 L (Pediatric) §0.003 to 0.1 L (Neonatal) ¡Inspiratory flow: §6 to 120 L/min (Adult) §6 to 30 L/min (Pediatric and Neonatal) ¡Inspiratory pressure: 0 to 80 mbar (cmH2O) ¡PEEP / intermittent PEEP:0 to 35 mbar (cmH2O)
• Pressure assist (PASB) (Psupp):0 to 80 mbar (cmH2O)
• Rise time for inspiratory pressure: 0 to 2 s ¡O2 concentration: 21 to 100 Vol.%
• Multi-sense Trigger Criteria: Internal automatic pressure trigger, Flow, Volume (Flow adjustable 0.3 to 15 L/min)

Measured values displayed

• Airway pressure: Peak pressure, plateau pressure, mean pressure, PEEP, min. pressure (0 to 99 mbar/cmH2O)
• Minute volume (MV), (BTPS): MV, MVspont, MVleak (0 to 99 L/min)
• Tidal volume (VT), (BTPS): Inspired VT, expired VT, VTASB (VTPS) (0 to 3999 mL)
• Breathing frequency (f): ftotal, fspon, fmand. (0 to 300/bpm)
• O2 concentration: (FiO2) Inspired O2 concentration (15 to 100 Vol.%)

Lung mechanics:

• Resistance ((0.0 to 600 mbar/L/s)(cmH2O/L/s)
• Compliance ((0.0 to 300 mL/mbar)(mL/cmH2O)
• Breathing gas temperature: 18°to 51°C
• Waveforms: Airway pressure-time, flow-time, volume-time, …
• Trends (optional): FiO2, MV, VT, f, PEEPi, R, C, etCO2, …
• Loops (optional): Paw-V, V-Flow, Flow-Paw, …
• Capnography (etCO2) (optional): 0 to 100 mmHg
• CO2 production (VCO2): 0 to 999 mL/min, STPD
• Serial dead space Vds: 0 to 999 mL, BTPS
• Dead space ventilation (Vds/VT): 0 to 99%Alarms / Monitoring
• Airway pressure: High/Low
• Expired minute volume: High/Low
• Tidal volume: High
• Apnea alarm time: 5 to 60 s
• Spontaneous breath frequency: High
• Inspired O2 concentration: High/Low
• Breathing gas temperature: High
• SpO2 pulse (optional): High/Low
• etCO2 (optional): High/Low

Operating data

• Mains power connection: 100 to 240 V, 50/60 Hz, 10 to 30 V DC (optional)
• Power consumption: Approx. 125 W
• Gas supply operating pressure: O2, air: 2.7 to 6 bar/39 to 87 PSI

Physical Specifications

• Dimensions ventilator (WxHxD): 530x290x450 cm (20.9×11.4×17.7 inches) (without trolley)
• Weight basic unit: Approx. 27 kg (60 lbs.)
• Diagonal screen size: 6.5″ TFT LCD color display

Machine outputs

• Digital output: Output and reception via an RS 232 C interface
• Digital output (optional): For output and reception via two RS 232 C interfaces
• Analog output (optional): For analog output of two measured values
