Nippy 3 Portable Respiratory Ventilator (Refurbished)

The NIPPY 3+ provides safe and accurate treatment for patients requiring ventilation. Four modes of ventilation, an internal battery, as well as its pressure range, enable treatment for a wide variety of patients. The NIPPY 3+ is intended for use by patients who require respiratory support via nasal, full-face mask or tracheotomy. Non-invasive positive pressure ventilation (NIPPY) is a treatment to help with your breathing. NIPPY works by blowing air into the lungs until a pre-set airway pressure is reached. This will assist your breathing at night. The NIPPY ventilator can be used for a variety of respiratory conditions and muscle disorders. The settings on your NIPPY have been set for your particular respiratory condition; please ensure these are not altered. The NIPPY is aimed at giving you a better quality night’s sleep which should result in you feeling more refreshed during the day. There are also health benefits such as a decreased risk of you requiring unplanned or emergency admissions to hospital. You may also feel headache free if this was a problem previously.

Versatile.

Intuitive.

Portable.

• Universal mains input and internal battery operates anywhere in the world.
• The unit can be connected to nurse-call systems using the optional nurse-call adapter

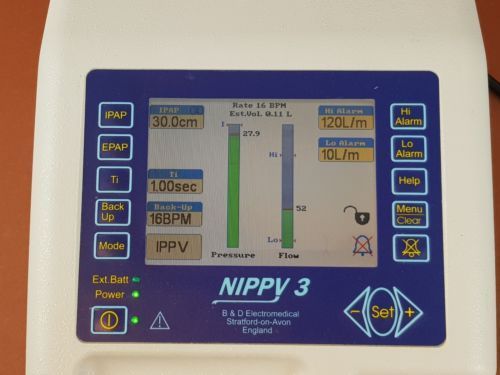

• Intuitive Large, colour LCD display which clearly shows all settings at once with clearly labelled buttons for quick and easy setting adjustments.
• Help button provides on screen description of the function of each setting.
• Comprehensive alarms with easily understood on-screen messages.
• The NIPPY 3+ is available with a 6.8 amp-hour internal battery providing up-to 12-hours power.
• Internal battery option and adjustable fast-response flow triggers.
• Large, colour LCD display which clearly shows all settings.
• Settings are lockable.
• Comprehensive alarms with easily understood on-screen messages.
• On-screen compliance data.
• Full event log which can be downloaded to a PC.
• Universal mains input and internal battery operates anywhere in the world.
• Can be connected to nurse-call systems using the optional nurse-call adapter

Technical Specifications

• Continuous Positive Airway Pressure(CPAP)
• Pressure support (Bi-level)
• Pressure control mode
• Intermittent Positive Pressure Ventilation (IPPV)
• IPAP 3 – 38cmH2 O
• EPAP 3 – 20cmH2 O
• Inspiratory trigger 0.14 – 2.21L/second2
• Expiratory trigger 0.28 – 1.67L/second2
• Inspiratory time (Ti) 0.7 – 3.0 seconds
• Maximum output flow 200 L/min
• Back-up breathing rate 6 – 43 Breaths per minute
• Supply voltage 100 – 240 V ac
• Supply frequency 47 – 63 Hz
• Maximum input current: 0.4 -1.0 Amperes
• Internal battery 24V dc 6.8Ahr providing 4 -12 hours battery back-up depending on settings and leak
• External battery 24V dc 6.8Ahr providing 4 -12 hours battery back-up depending on settings and leak
• Warranty and Services provided anywhere in India
