Newport HT-50 Ventilator (Refurbished)


SKU: MP21489

Product Details:

Minimum Order Quantity 1 Unit
Modes of ventilation AV(PC), SIMV(VC), CMV(VC), CMV(PC), AV(VC)
Application Ambulance,ICU,Portable,Home Care
Operation Mode Battery Operated, Electricity Operated
Patient Age Group Adult
Type Digital

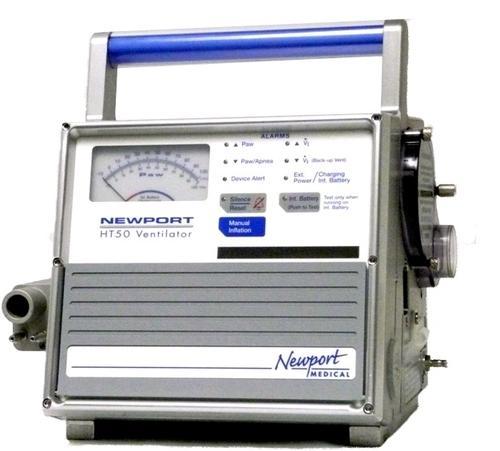

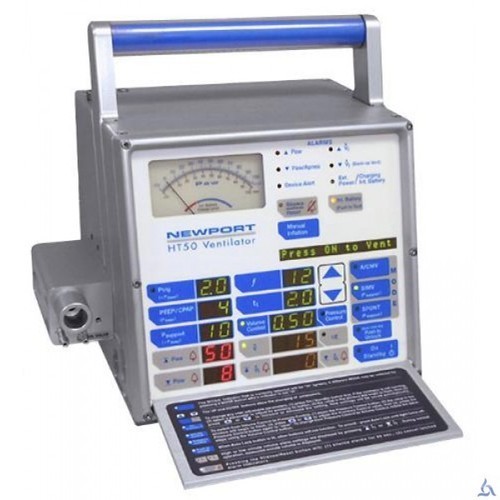

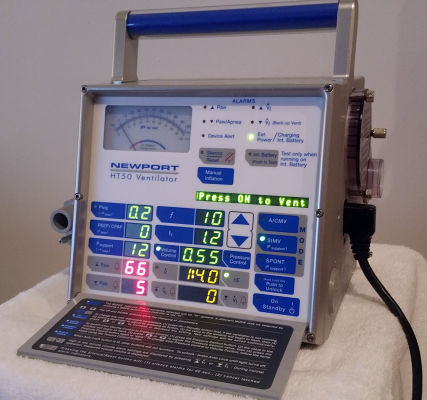

Newport HT-50 Ventilator (Refurbished)

The Newport HT50 Ventilator is the value leader in ventilatory care. With its rugged construction, easy trigger sensitivity, and fast re-charge from AC or external DC, the HT50 Ventilator is ideally suited for extended care, transport, hospital and homecare applications.

This is the ventilator you’ve been waiting for – compact, lightweight, unsurpassed reliability, and self contained. Its comprehensive, versatile features meet the demands of almost any healthcare setting. Suitable for both pediatric (10kg) and adult patients for invasive or non-invasive ventilation, it’s easy to use and inexpensive to maintain.

  • Volume or Pressure Control Ventilation
  • Invasive or Non-Invasive Ventilation
  • Pressure Support
  • PEEP/CPAP, Built-in
  • Comprehensive Alarms/Monitoring
  • Internal Battery, long lasting with fast recharge
  • Unique Gas Delivery System Requires No External Air Compressor
  • Optional Air/Oxygen Mixer for high pressure 0.21-1.00
  • Optional Blending Bag for Low Flow Systems
  • iOPTIMIZE one-button optimization multifunction auto image optimization

Newport HT-50 Ventilator Specifications

Dimensions

  • Size: height: 10.24 inches (26 cm) width: 10.63 inches (27 cm)
  • Weight: 15lbs (6.8kg) (w/o humidifier)

Patient Range

  • Pediatric (10 kg) – Adult

Control Settings

  • Modes (Pressure or Volume): A/CMV, SIMV, SPONT
  • Volume Control (Tidal volume): 100 to 2,200 mL
  • ƒ(Frequency): 1 to 99b/min – tl (Inspiratory Time): 0.1 to 3.0 sec
  • PEEP/CPAP: 0 to 30 cmH2O/0 to 30 mbar
  • Psupport (Pressure Support): 0 to 60 cmH2O/0 to 60 mbar
  • V (Flow): 6 to 100 L/min
  • I:E Ratio: 1:99 to 3:1
  • Pressure Control (Target Pressure): 5 to 60 cmH2O/5 to 60 mbar
  • P trig (Sensitivity): -9.9 to 0 cmH2O/-9.9 to 0 mbar
  • Panel Lock: ON/OFF
  • Manual Inflation: 3 sec maximum (single operator controlled breath)
  • FIO2: .21 to 1.00

Monitor Parameters

  • Paw (Peak, Mean, Base): VT (insp. tidal volume); Proximial Airway Temperature: (insp. minute volume)
  • Internal Battery: ƒ total (total frequency)
