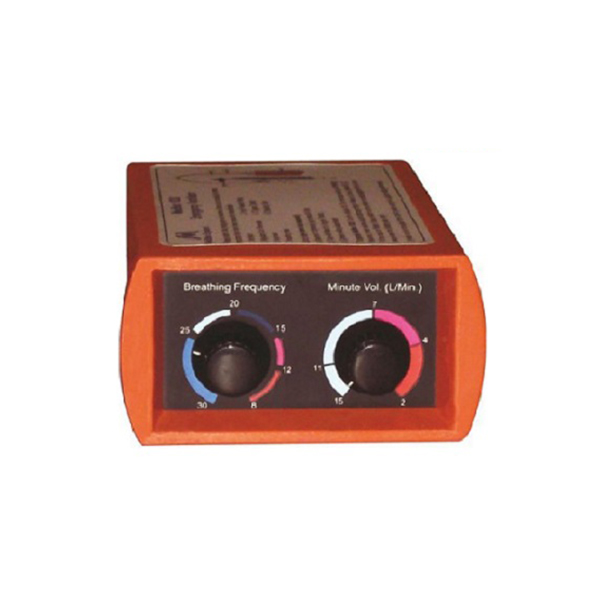

Allied Portable Emergency Ventilator

Product Details:

Brand: Allied Medical

Breathing Frequency: 6-30 bpm Adjustable

Ie Ratio: Preset (12)

Oxygen Concentration: 60 or 100% (Air mix)

Minute Volume: With 60% O2,60 or 100%,3 to 20 Ltr/min

Add on PEEP: 0-20 cmH 2O Optional

Pressure Manometer: 20-100 cmH2O

Noise: Less Than 65 db

Cylinder Time: Less Than 60 mi 3 Ltr. cylinder when fully charged with MV of 6 l/m)

Driving Gas Pressure: 280-600 kPa

Dimensions: 257x135x152 (mm) (WxHxD)

Weight: 4.4 Kg

Storage Temperature: 0 Degree C to 50 Degree C

Operating Temperature: 0 Degree C to 50 Degree C

Storage Atmospheric Pressure: 50 to 110 kPa

Operating Atmospheric Pressure: 70-110kPa

Wall Mount: Optional
Specification

Other Details:

• Driven from a pipeline or cylinder operated with a non-return valve
• Pneumatically Driven Ventilator
• Driven from a pipeline or cylinder operated with a non-return valve
• IPPV Ventilation Mode
• Adult & Pediatric
• Manual Override Function
• Bronchial Suction
• Inbuilt Battery
• Electronically Controlled Alarm System
• Low-Pressure Alarm (Apnea Alarm)
• High-Pressure Alarm (Barotrauma)
• Low Battery Alarm
• Low Gas Supply Alarm
• Ventilation Cycle Indication
• Alarm Silence up to 120 Sec.

Standard Accessories:

• Ventilator Main Unit
• High-Pressure Hose
• Breathing Hose
• 2/3 Ltr O2 Cylinder
• Breathing Valve
• Face mask
• Regulator cum Flow meter
• Cylinder Refilling Attachment

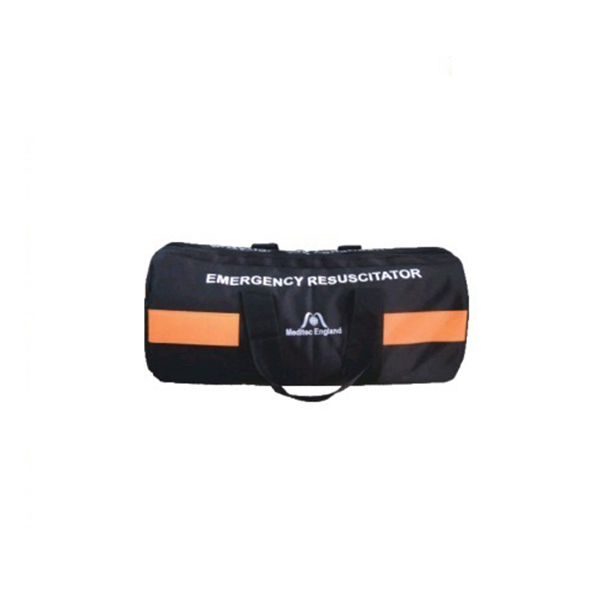

• Dust Proof Carry Bag
