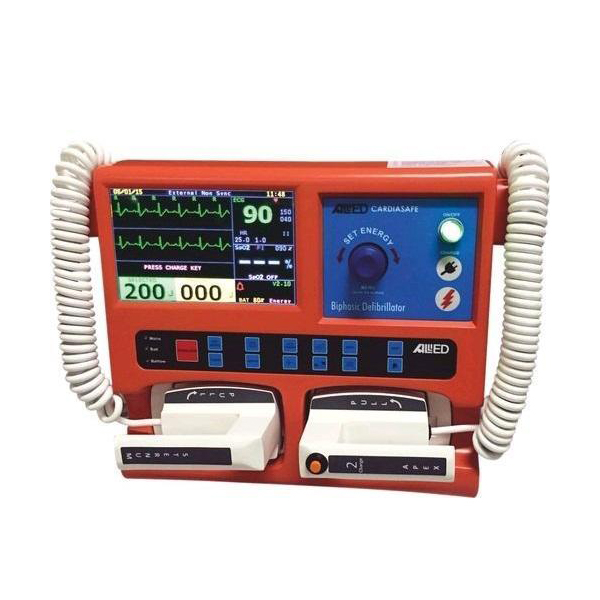

Allied Biphasic Defibrillator Monitor

Product Details:

Charging Time: Less Than 8 seconds

Brand: Allied Medical

Weight: 4.5 Kgs.

Display: 320 x 240 pixels,5.7” Blue LCD with LED backlit

Dimensions: H180 x W230 x D210mm (max.) without Paddle

Display Area: 120mm x 90mm

Operating Mode: Manual

Energy: 2 to 200 joules in 12 steps

Waveform: Biphasic

Synchronous: Energy delivery begins within 60 ms of the QRS Peak

Check Mode: Manual test mode,Prints the status of

ECG Frequency Response: 0.5 Hz to 40 Hz (ECG),0.5 Hz to 30 Hz (Paddle)

ECG Patient isolation: Optical isolation

ECG Lead selection: Lead I,II and III

ECG Gain setting: 0.5,1.0 and 2.0

CMRR: Greater Than 90 db

ECG Sweep Speed: 12.5,25.0,50.0 mm/sec

ECG Waveform: 1 ECG,2 is 4sec delayed (cascaded)

ECG Data Output: Analog output of ECG

ECG Digital filter: Digital signal processing for good quality of ECG

ECG Freeze mode: To freeze last 4 seconds ECG

Range: 30-250 BPM

Accuracy: +/- 2 BPM

Resolution: 1 BPM

Tone: Beep on every QRS detected

Low alarm Limit Range: 30-245 (step of 5)

High alarm Limit Range: 40-250 (step of 5)

Paper Type: Thermal paper 50/55 mm width,20 meters length

ECG in Defib Mode: Prints 5 Seconds pre & post ECG

Print Annotates: Time,Date,ECG Lead,Mode,Shock Status & selected Energy

Delay: 10 Seconds

Input: 150-276VAC,50Hz,60Hz,12V DC for ambulance

Output: 17V at 4A

Battery: 12V/3.8 Ah Rechargeable

Back up time: 3 hours min on full charge in ECG mode /50 shock of 150 Joules in defib mode

Power consumption: 30 Watts (max) in ECG mode

Operating Temp: (-)5 Degree C,(+)50 Degree C

Heart Rate Humidity: Up to 95 % non-condensing
Specification

Features:

• Offer variable energy level selection. (2, 3, 5,7, 10, 20, 30, 50, 70, 100, 150, 200 Joules)
• Battery capacity – 50 shocks on the single charge.
• Adult & pediatric paddles support.
• Compact & Light weight : Approx.4.5 Kgs.
• Printer
• Optional: Non invasive pacing, SPO2 , NIBP, AED.

Other Details:

Defibrillator:
Paddle Assembly: External paddle assembly with coil retractable high voltage cable Adults & Pediatric paddle integrated to the same handle

Printer:

• Defib Mode: Stores & prints 10 Seconds of Defib Shock data i.e. 5 seconds pre-critical & 5 seconds post critical Maximum events that can be store Memory of 10
• Print Annotates: Time, Date, ECG Lead, Mode, Shock Status & selected Energy
• Power Supply (AC Mains Through Adaptor):
• Backup time: 3 hours min on the full charge in ECG mode /50 shocks of 150 Joules in defib mode

Optional:

• Non-Invasive Pacing
• SPO2
• NIBP
• AED
• EtCO2 Monitoring
• 360 J Energy
