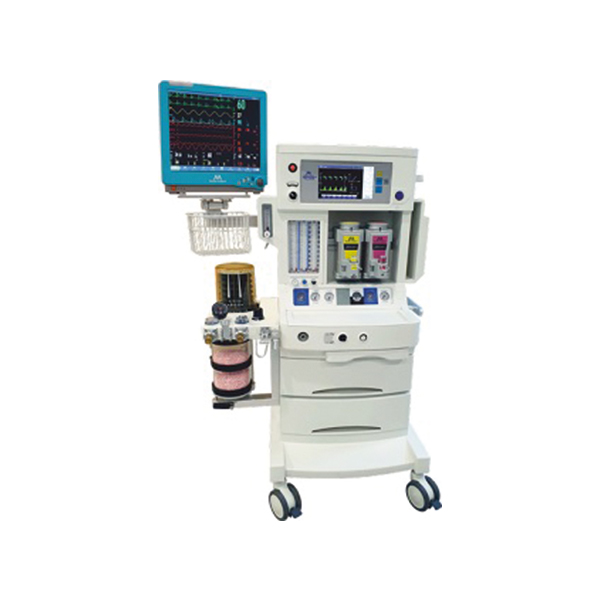

Meditec England Neptune Plus Anaesthesia Workstation With Modular Patient Monitor

Product Details:

Minimum Order Quantity: 1 Unit

Pack size: piece

Brand: Meditec England

Material: Plastic

Usage/Application: ICU Use

Positioning: Trolley

Features: Advanced anaesthesia Workstation

Automation Grade: Automatic

Oxygen Flush: 30-70 Lpm

Volume: 20-1600ml

Battery Life: 2 hours
Specification

Features:

With an integrated design and excellent quality, each anesthesia system is custom built to meet your requirements

Mechanical flow meter

Twin Selectatec mounting for agent specific temperature and pressure compensated vaporizers

Pin indexed yokes for O2 and N2O

NIST inlets for piped medical gases for O2, N2O & Air as standard

Single Bi-stable system ON / OFF switch for gases & power supply

Pull out writing table

Common gas outlet (CGO)

Open/Close change over switch for convenient switch-over from open to closed system

Suitable for open, semi-open & closed circuit system application

Electrical outlets for running other medical equipment

Auxiliary O2 outlet with flowmeter as standard

At Meditec England, we recognize the demands and requirements of the Anaesthetist in the Operating Theatre and have taken these into consideration when developing the all-new NeptunePLUS Anaesthesia Workstation. The NeptunePLUS excels in performance and offers complete flexibility to the Anaesthetist.

Patient safety features:

Anti Hypoxic Device ensures a minimum of 25% O at all times and cuts off N2 O supply if O2 Fails

Audio Visual Alarm for O2 failure

O 2Flush 35 to 70 LPM O2 Flow

System Pressure Relief at 125 cmH2O

Circle System Absorber:

Bypass switch allows canister change during ventilation

Bag/ventilator switch Easy changeover from a ventilator to bag & vice versa

Integrated airway pressure manometer

Moisture drain valve

Quick release (lever operated) soda lime canister system

APL valve

Built-in oxygen monitor sensor port

Excellent ergonomics with swivel breathing bag arm

The Single / Dual canister system

Autoclavable

Heated Circuit (optional)

Patient Monitoring (Optional):

The Neptune range offers a wide choice of Monitoring Systems with the availability of optional extended parameters such as AG, BIS, ICG, CO, 4 x IBP, EEG, Para-magnetic O2

Other Details:

Cylinder Yokes: Color-coded gas specific (pin indexed) yokes with sliding stainless steel clamping bars for easy handling. Holding O2 and N2O, 5Ltr water capacity cylinders
Oxygen Flush: Emergency oxygen flush switch at table level to give 35-70 Ltrs/min for emergencies

O2 failure warning alarm: Self-activated electro-pneumatic audio-visual warning device to indicate the drop in O2 pressure below 2.5 Bar

Hypoxic Guard: Mixing device to proportion the N2O in such a way that minimum of 25% O2 is always delivered in the gas mixture

Basal flow with On/off Switch: 250 50 ml basal flow of Oxygen as soon as the machine is switched on (optional)

Pipe Line Gas Inlets: Non-interchangeable screw-threaded (NIST) pipeline inlets one each for O2, N2O, and Air. In case of drop-in piped gas pressure, the pin index cylinders take over automatically

Pressure Gauges: Large diameter, color-coded gauges fitted at the convenient angle for better visibility and clarity. One for each of the pin indexed yokes and one each corresponding to the piped gas inlet
