- Available for Isoflurane/Halothane/ Sevoflurane
- Filling options of Screw Fill or *Quick Fil® (Sevoflurane only), Meditec Fill®
- Compatible with *Selectatec® back bar with Interlock, Cagemount
- Stability ensured
- Precision engineered for complete accuracy
- Maintenance free
- Due to design improvements in the gas pathways, the Pisces vaporizer excels in output stability over a wide range of variables and can work in the most extreme conditions.
- Gives superb performance over a wide range of vapor concentration, temperature, particularly at low flows.
- A range of mounting systems makes it compatible with either Selectatec® back bars with interlock, Cagemount.
- The Meditec Pisces is a truly flexible vaporizer designed to be compatible with other manufacturers’ systems.
- To minimize filling frequency, the Pisces vaporizer accommodates 250 ± 25 ml of anesthetic agent.
Accuracy and Stability:

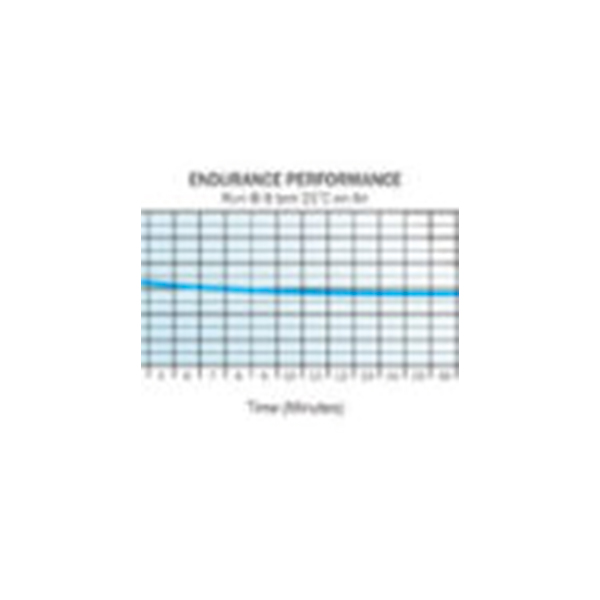

- All Pisces vaporizers are calibrated on a laser refractometer and are fully flow and temperature compensated to ensure output stability.
- Pisces vaporizers are precision engineered in the manufacture, fully tested and quality assured to comply with the most stringent of standards.

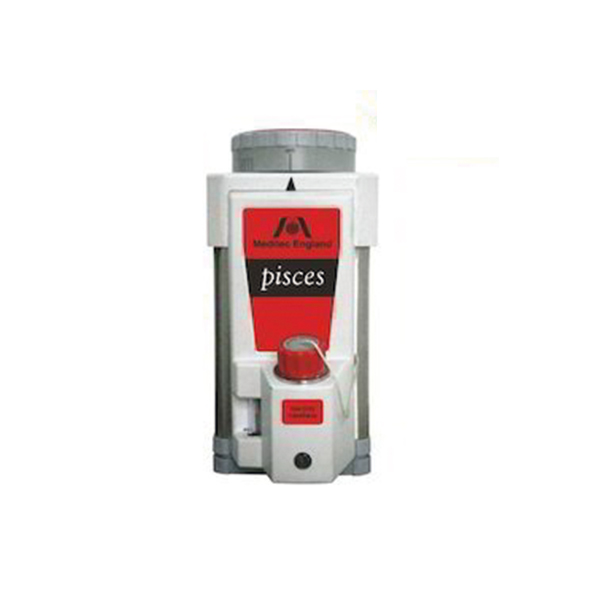

- The Pisces vaporizer has been designed to be simple to use.
- It”s ‘pull and turn’ dial allows single hand operation and enables the chosen output concentration to be easily read.

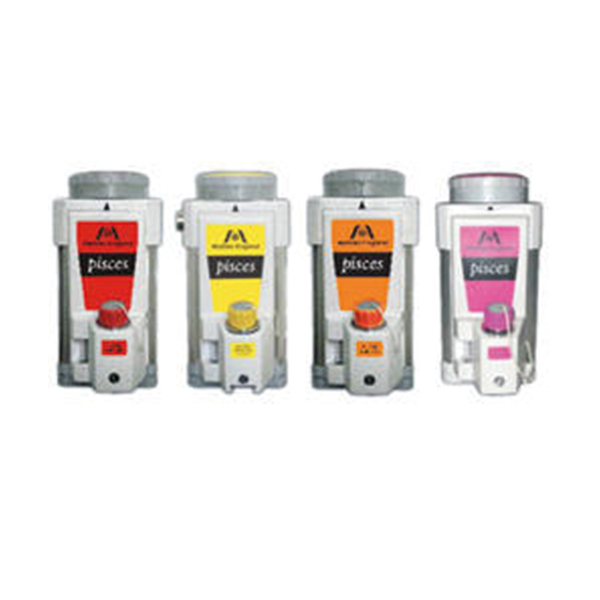

- All Pisces vaporizers are color coded, have clear agent-level indicators and a tamper proof label for complete security.
- Constructed from specially selected materials, the Pisces vaporizer is resistant to wear from anesthetic agents and the lack of moving parts within the vaporizer itself ensures that the product is extremely robust.
|Dimensions||Height||Width||Depth||Weight (Approx)||Agent Capacity|
|Retention by Wicks 60ml|
|Selectatec® with Interlock||240mm||114mm||220mm||7.35 kg||250ml ± 25ml|
|Cagemount||238mm||134mm||200mm||6.80 kg||250ml ± 25ml|
|Drager Plug-In||249mm||110mm||230mm||7.20 kg||250ml ± 25ml|
