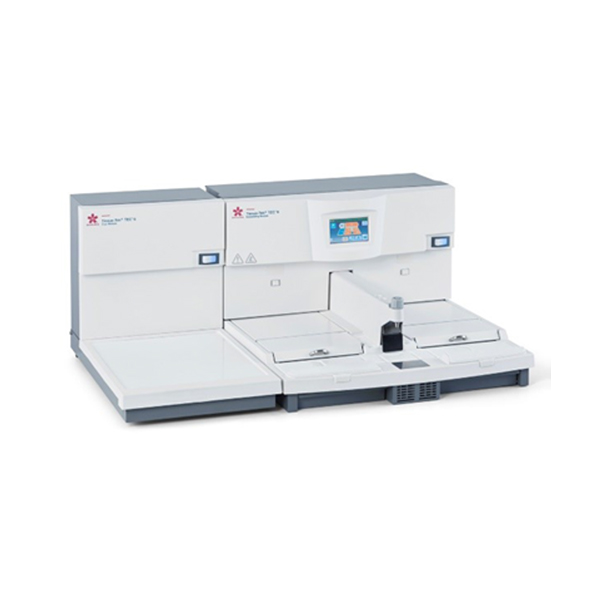

TissueTek TEC 6

The TissueTek TEC 6 Embedding Console System offers reliability comfort and easeofuse that users have come to know and expect from the TissueTek TECseries.

Features

Safe and reliable embedding with ease Anti-glare, coated work surfaces reduce eye strain and provide better visual identification of tissues. Adjustable LED lighting improves specimen visibility while eliminating workplace clutter from external lighting or lamps. The software-driven Clean Mode provides an easy method for cleaning the forceps wells, reducing opportunities for cross contamination of tissue blocks. The optional Tissue-Tek® TEC™ 6 Magnifying Lens allows users to keep a close eye on even the smallest biopsies to ensure proper orientation.
Specification

Dimensions
Embedding Module (W x D x H) 57.5 x 64.2 x 37.7 cm
Cryo Module (W x D x H) 33 x 61.7 x 37.7 cm
Combined (W x D x H)90.5 x64.2 x 37.7 cm

Weight
Embedding Module -25 kg
Cryo Module – 22 kg
Combined – 47 kg

Rated power supply
Embedding Module – 230 VAC ± 10%, 50 Hz, 4 A
Cryo Module – 230 VAC ± 10%, 50 Hz, 1 A
Temperature Control Embedding Console
Heated area & Programmable range
1. Paraffin Chamber 50 to 75°C
2. Left and right warming chambers: 50 to 75°C
3. Hot plate: 50 to 75°C
Cold spot temperature – 15°C or below (room temperature of 25°C, no wind, no load (nothing on the cold spot))

Temperature Control Cryo Console
Lowest temperature achievable – -5°C ± 3,5°C or below (Room temperature of 25°C, with no wind, measured at the center of the cold plate under no loaded environment)
Time to reach at a setting -5°C – Within 30 min after started to operate (Room temperature of 25°C, with no wind, measured at the center of the cold plate under no loaded environment)

Capacity
Paraffin Chamber – 4 L
Left and Right thermal chambers – 1.5 L or up to 150 cassettes
Working area – up to 20 cassettes
Cryo plate – up to 60 blocks
