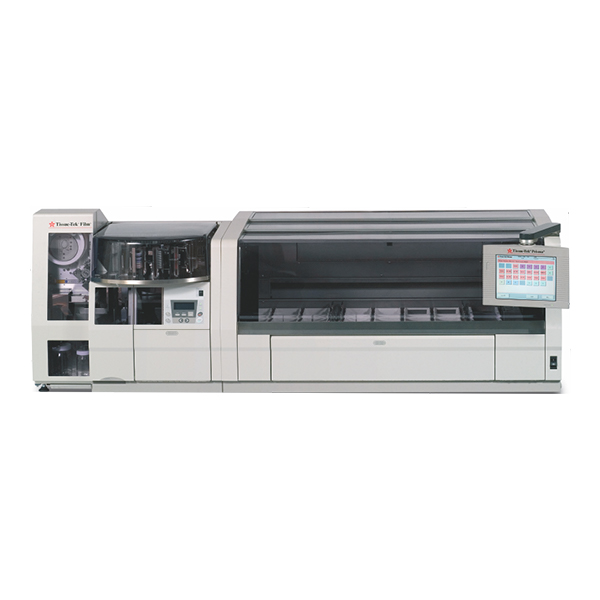

TissueTek Prisma Plus & TissueTek Glas g2 Coverslipper

TissueTek Prisma Plus &amp TissueTek Glas g2 provides high reliability user convenience and flexibility in staining and glass coverslipping. One system for routine and special staining with Integrated Track &amp Trace with barcode reading.

Benefits

• Improved quality, efficiency and user friendliness
• Rapid glass coverslipping with 360 slides per hour
• One system for routine and special staining
• Integrated track & trace and slide identification with barcode reading
• An air bubble free result through Mechatronics mechanism

Features

Interfaced Automated Slide Stainer and Glass Coverslipper

• An air bubble free result through the Mechatronics™ mechanism

• Manual loading possibility of slide baskets in Glas™ g2, when linked to Tissue-Tek® Prisma®

• Improved workflow, with unloading capacity up to 240 slides

• Decreased drying time of slides
Specification

Throughput Up to 330 slides per hour both standalone and when linked to Prisma®
Dimensions Glas™ g2
W x D x H 75 x 62 x 75 cm
Dimensions Prisma®
W x D x H 125 x 71 x 63 cm
Dimensions Link between Prisma® and Glas™ g2
W x D x H 200 x 71 x 75 cm
Number of Staining Reservoirs
Start Stations 1 to 3 stations
Reagent Stations 31 to 51 stations
Drying Stations 0 to 2 stations
Wash Stations 0 to 4 stations (8 programmable steps)
Heating Stations 2 optional stations
Capacity
Reagent Volume 160, 260 and 680 ml
Staining Protocols 11 runs continuously loading and
simultaneously running at the same time
Baskets 10 –or 20 slide baskets
Loading Up to 60 slides per run (both when
linked to Glas™ g2 and stand alone)
Unloading Up to 240 slides in the Glas™ g2
Temperature
Drying Station 30 – 65°C
Heating Station 30 – 70°C
