RetinaStation

SKU: MP47504

Sign in to view price

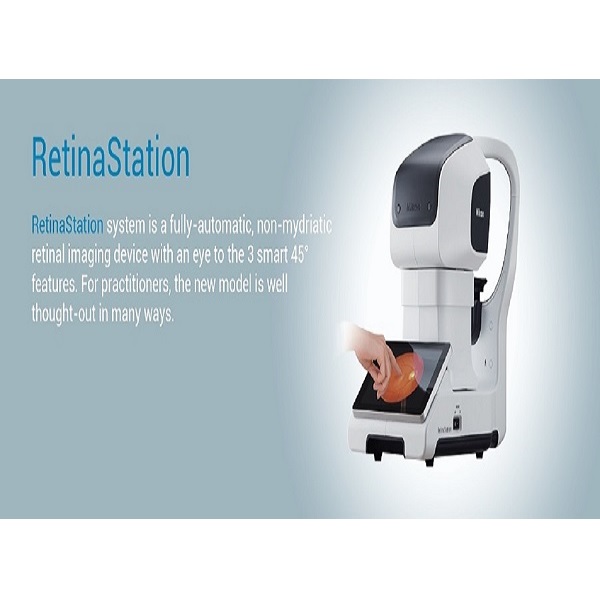

The RetinaStation system is a fully-automatic, non-mydriatic 45° retinal imaging devicewith an eye to the 3 smart features.For practitioners, the new model is well thought-out in many ways.They include ease of use, top-quality image capturing, stand-alone design

The RetinaStation with a high resolution of 12 million pixels is easy to use.

Accurate color rendition is notched up in usual imaging and also in enlargements and photo-montages. Sharp area-to-area images help increase diagnostic accuracy

Learn More



Ask for Quote

Product Information

The RetinaStation System Is A Fully-automatic, Non-mydriatic 45° Retinal Imaging Devicewith An Eye To The 3 Smart Features.For Practitioners, The New Model Is Well Thought-out In Many Ways.

Product Description

The RetinaStation system is a fully-automatic, non-mydriatic 45° retinal imaging devicewith an eye to the 3 smart features.For practitioners, the new model is well thought-out in many ways.They include ease of use, top-quality image capturing, stand-alone design
The RetinaStation with a high resolution of 12 million pixels is easy to use.
Accurate color rendition is notched up in usual imaging and also in enlargements and photo-montages. Sharp area-to-area images help increase diagnostic accuracy

  • 1st Nikon branded ophthalmic product
  • 45 degreeNonMydriaticfundus camera
  • All In One Standalone Fundus Camera
  • Just 1 click Full-Automatic Capturing
  • High quality fundus image
  • Smart-Phone like operation
  • Automatic Wide Field Montage

Technical Specifications

Product
function
RetinaStation
Value / Type
Remark
Fundus image Non-mydriatic, color image
Field of view >= 45 degrees
Illumination for retina image (capture) White LED Flashes for capturing images
Cornea image (capture) White LED Flashes for capturing images
Illumination during alignment to patient’s retina NIR LED Central wavelength in the range of 735 – 850nm
Focus diopter adjustment range −15D to +10D −30D to−10D or +5D~+30D Without compensation lens With compensation lens
Minimum pupil size 4mm
Focus adjustment Auto / manual Split-image technique
Image sensor CMOS 12 megapixel
Z-ranging (working distance) 2 fiber dots
Working distance 25㎜ from lens to cornea Accuracy:+/−0.5㎜
Fixation Internal 10 points
General
Function Value / Type
Alignment Fully automatic 3D tracking
Alignment mode Full auto / auto/ manua
Chin rest Motorized
Interface USB 2.0 port*, LAN, HDMI, WiFi (optional)
Input/output format Image format: JPEG, PNG, BMP, DICOM (optional)
Display 10.1” LCD monitor, touch panel
Operation range Front / back :40㎜ Left / right :90㎜ Up / down :30㎜
Chin rest range Up / down :70㎜
