Model JAY-10
Flow rate 1-9L/min, 93%±3%, 10L/min, 90%±2%
Outlet Pressure (Mpa)0.04-0.07
Sound Level ≤50db
Power AC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available)
Power Consumption ≤550W
LCD display Swith times, Operating pressure, Present Working Time,Accumulating Time, presetting Time from 10mins to 40hours
Alarm Power failure alarm, High&Low pressure alarm
Net Weight 26Kgs
Size (mm)365×375×600mm

Optional:

  • Nebulizer(Atomization)
  • Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%(82% not included), it will give red light.
  • Maintenance alarm: alarm for maintenance after 3000 hours operation
  • Alarm for high temperature inside systems above 50°C
  • Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
  • Small LCD display: accumulating time; present working time presetting time.
  • Dualflows.

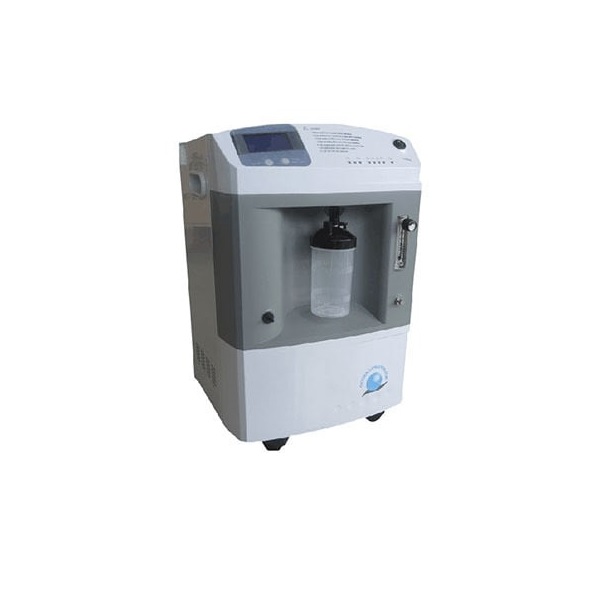

Oxygen Concentrator Jay 10 1

SKU: MP58925 Category: Tags: ,
