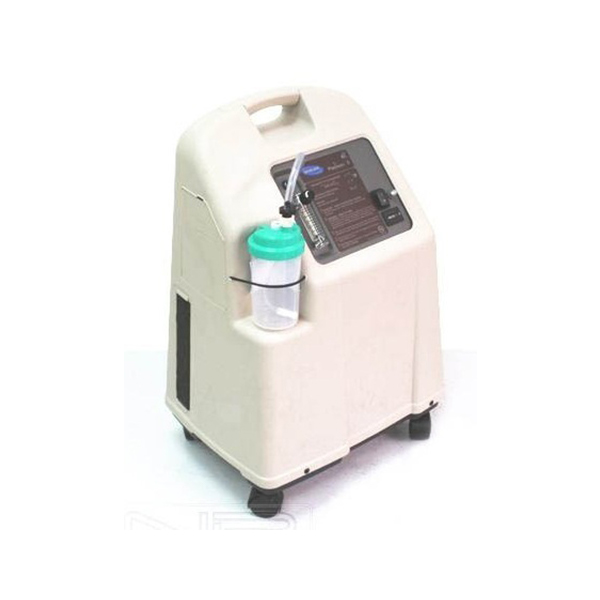

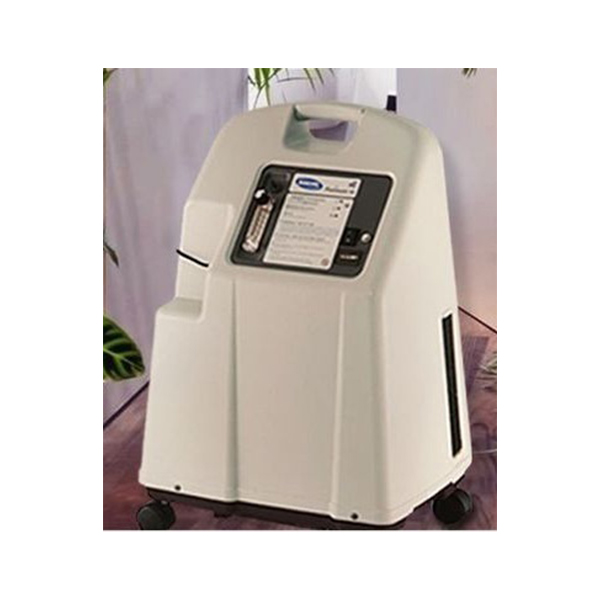

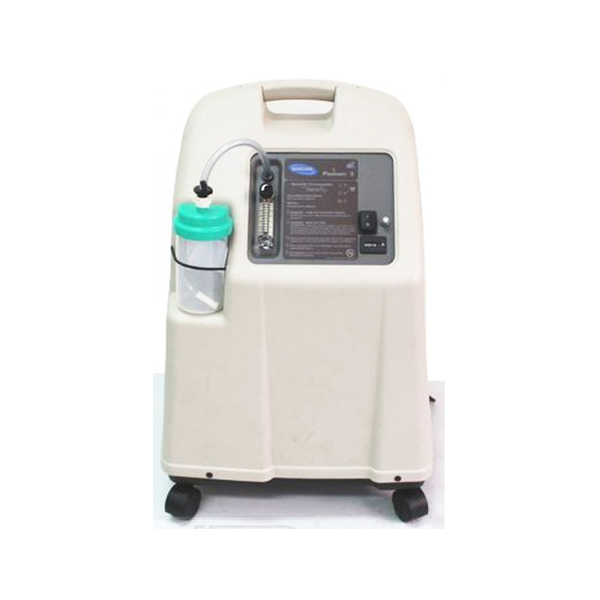

Invacare Platinum 9LPM Oxygen Concentrator

SKU: MP21428

Product Details:

Minimum Order Quantity 1 Unit
Capacity 10 L
Condition New
Brand Invacare

The Invacare Platinum 9 offers providers a value added and reliable global solution to treat patients with high flow requirements. The unit features quiet operation, a top handle and bottom recesses for easy handling and a side filter access door. While optimising oxygen concentration, Platinum 9 minimises costs associated to maintenance and delivery.

  • User-preferred neutral color to help blend in to any home environment
  • Invcare SensO2 Oxygen Purity Sensor to warn you if purity drops
  • Compatible with the Invacare HomeFill Oxygen System
  • Battery-free power loss alarm for added peace of mind
  • Three separate filters assure oxygen purity


Patient Benefits

  • User friendly design with easy to see control panel, humidifier bottle holder and filter access
  • HomeFill system compatibility allows patients with flow rates up to 5LPM to enjoy life’s experiences with small, refillable cylinders
  • Reliable concentrator provides unlimited, worry-free oxygen supply
  • It allows patients to stay at home comfortably and safely thanks to a series of integrated alarms for added safety
  • Users will appreciate its simplicity of use combined with maximum security
  • High oxygen purity, low maintenance and simple to operate
  • Sens O2 System – Lets you monitor oxygen purity consistently


Feature Performance/Range
Flow Continuous
Flow Range 1 – 9 LPM
Sound level < 47dB(A)
Oxygen Purity 87 – 95.6%
Dimensions (L x W x H) 365 mm x 467 mm x 670 mm
Weight 24 Kg
Average Power Consumption 475W
Maximum Outlet Pressure 62.0 kPa ± 3.45 kPa (9 ± 0.5 psi)
Filters Cabinet (2), Outlet HEPA and Compressor Inlet
Time of Operation Up to 24 hours per day
Tubing 2.1 m (7 ft) cannula with a maximum 15.2 m

(50 ft) of Crush-Proof Tubing (DO NOT
