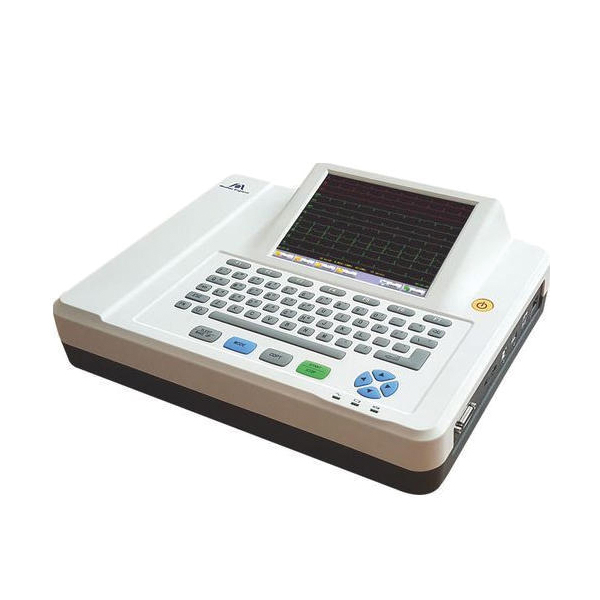

Meditec England Electrocardiograph Machine

MPIN: MP40780

Sign in to view price

Ask for Quote

Product Details:

Dimension 410mm x 316mm x 136mm

Time Constant Less Than 5s

Sensitivity 2.5,5,10,20mm/mV

Weight 5.2kg (with battery)

Brand Meditec England

Emg Filter 25Hz/35Hz/45Hz/OFF

Input Circuit Defibrillator protection built-in

Lead Standard 12 leads

Dfg Filter 0.05/0.1/0.2/0.5Hz

Ac Filter 50Hz/60Hz/OFF

Input Impedance Greater Than 0.05mA

Acquisition Mode 12-leads ECG simultaneously

Paper Style Rolled or Z-folded

Record Paper 210mm,216mm paper width

Display 800 x 600 pixels,multicolur,8.4 Inch LCD

Communication Interface RS232,USB Socket

A and D Converter 12 bits

Measurement range +/-5m Vpp

Frequency Response 0.05 to 150Hz

Calibrating Voltage 1mV +/- 1%

Noise Level Greater Than 15uVp-p

Anti Baseline Drift Automatic

Lowpass Filter 150Hz/100Hz/70Hz

Recorder Thermal Printer
Specification

Features:

  • Working mode: Auto, Manual & Rhythm
  • Lead status display
  • 8.4 inch TFT color screen
  • Simple & clear keyboard layout, keyboard back light
  • 122 types of arrhythmia analysis
  • 120 seconds 12-lead waveform review and recording
  • Data Transmission and External printer by USB
  • Support 210mm rolling paper, Z-folded paper
  • Connectivity to ECG management software
  • Internal memory for 300 ECG records
  • High accuracy digital filter (EMC filter, AC filter, drift filter, low-pass filter)
  • 5.7″ high resolution 12 Channel ECG machine
  • In-built recorder
  • Built-in battery back-up
  • Auto / Manual / Rhythm modes
  • Anti-defibrillation and pace-maker detection
  • Storage capacity of 300 ECG’s
  • USB Connectivity with PC
  • Printer Port for external printer
