Life Support Products AutoVent 3000 Transport Ventilator

SKU: MP31958


SKU: MP31958

1x Life Support Products AutoVent 3000 Time Cycled, Constant Flow, Gas Powered Ventilator for Emergency Medical Service
Includes

1x AutoVent Patient Valve

1x Assy Valve

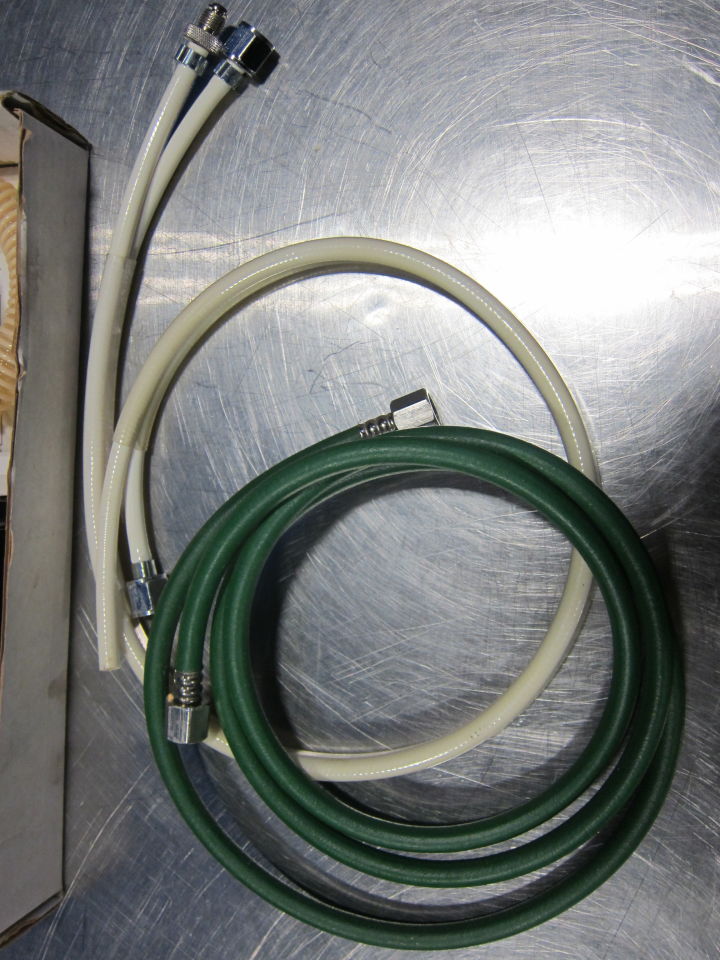

3x Connection Tubes

1x Operating Manual

Autovent 3000 transport ventilator for hospital provides independent controls for tidal volume and BPM with additional inspiratory time settings, and offers an even wider range of patient applications to meet most critical emergency care situations.

Specifications

  • Supply Pressure Range: 40 – 60 psig.
  • Gas Consumption Driving Gas: 0.5 lpm maximum.
  • Operating Temperature: 0 to 125 °F.
  • Storage Temperature: -40 to 160 °F.
  • Shipping Weight: 5.75 lb (2.6 kg).
  • Shipping Dimensions: 15″ x 12″ x 9″ (38 cm x 30.5 cm x 23 cm).

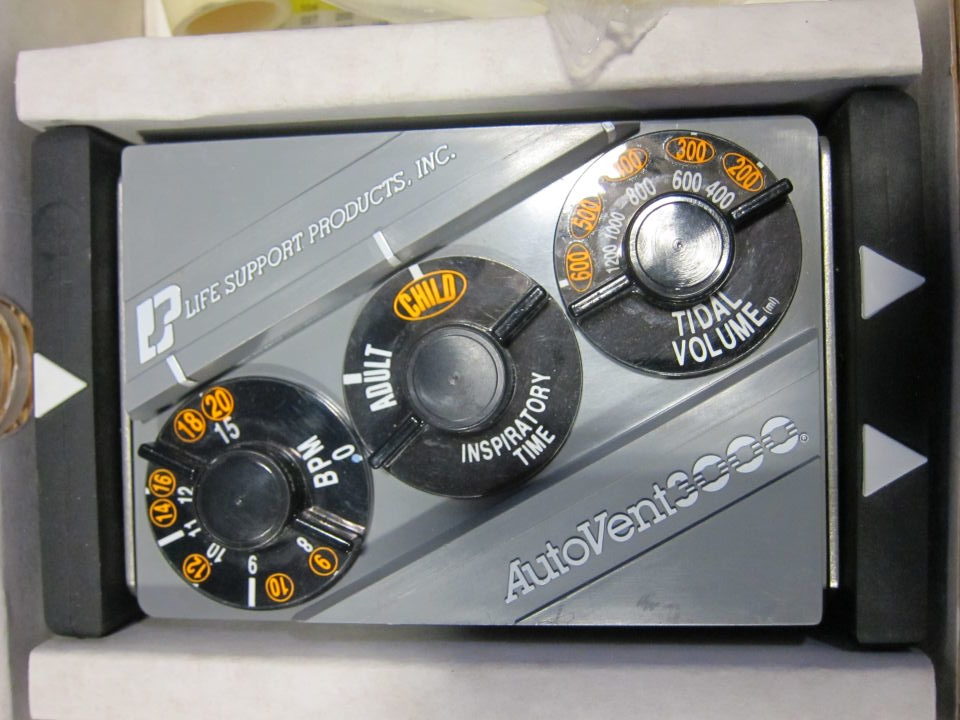

Control Module:

  • Weight: 24 oz. (680 grams).
  • Dimensions: 1.75″ (D) x 6″ (W) x 3.5″ (H) (4.4 cm x 15.24 cm x 8.9 cm).
  • Frequency: 8 to 28 BPM.
  • Tidal Volume: 200 to 1200 ml.
  • Flow Rate: 16 to 48 lpm.
  • Inspiratory Time: Approximately 0.75, 1.5, or 2.0 seconds.
  • Expiratory Time: 1.5 to 6.0 seconds.
  • I-E Ratio: 1:1 to 1:4.
  • Case Material: Polyester.
  • Input Connection: Plated brass.
  • Output Connection: Plated brass.
  • Minute Volume: 0 to 24 lpm.
  • Driving Gas: 0.5 lpm maximum.

Patient Valve Assembly:

  • Weight: 16 oz. (450 g).
  • Flow: 0 – 48 lpm at 50 psig (as required in demand mode).
  • Peak Inspiratory Flow: 48 lpm at an airway pressure drop of less than 2.5 cm H2O.
  • Delivery Pressure: 60 +/- 5 cm H2O.
  • (Insp.) Crack Pressure: 0 to -2 cm H2O (0 to -0.8″ H2O).
  • Exhalation Resistance:
    • 0 – 10 lpm: 1.5 cm H2O (max).
    • 11 – 70 lpm: 3.8 cm H2O (max).
  • Dead Space: 8 ml (excluding mask).
  • Inlet Fitting: Standard male oxygen DISS.
  • Filter: 25 micron stainless steel mesh.
  • Outlet: 22 mm outside diameter x 15 mm inside diameter (fits standard medical masks, endotracheal tubes, and tracheostomy tubes).
  • Materials:
    • Body – anodized aluminum.
    • Cover – polycarbonate.
    • Outlet fitting – polycarbonate.
    • Inlet fitting – plated brass.
SKU: MP31958 Categories: , Tag:
Condition

New
