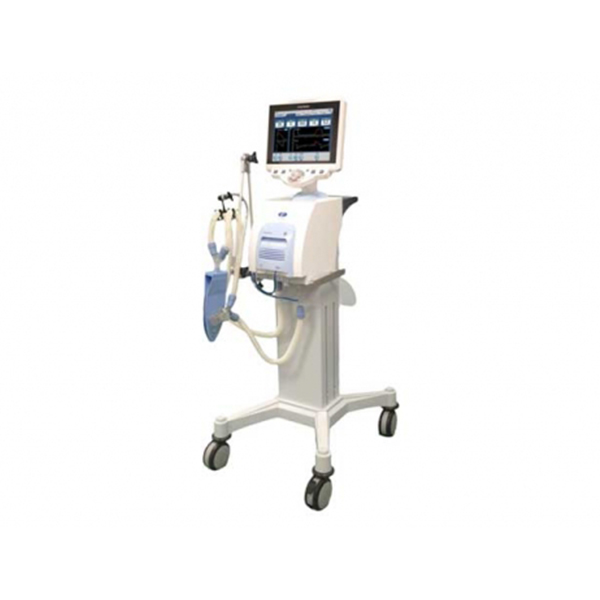

Inspiration7i Ventilator 12.1

The Inspiration®7i Ventilator Series is highly versatile and designed with the clinician in mind. Our patented Swiss pneumatic design allows high performance PSOL valves to provide outstanding breath delivery to Neonate through adult patients

Features

• Low cost of ownership
• High performance PSOL and active exhalation
• Comprehensive graphics and trending
• with event markers
• Neonate through adult
• Invasive and noninvasive
• Feedback-controlled NCPAP and NCPAP+
• Intra-hospital patient transport
• Intranet and Internet remote viewing
• Outstanding Heliox Management
• 2ml Tidal Volume
• Capnography ready

Specification

Modes of Ventilation

Assisted Control Mandatory Ventilation (CMV)
Synchronized Intermittent Mandatory Ventilation (SIMV)
Spontaneous Ventilation (CPAP + PS, CPAP + VS, SPAP)
Breath Types

Volume-controlled (V-CMV; V-SIMV)
Pressure-controlled (P-CMV; P-SIMV, PS)
Volume Targeted Pressure-controlled (PRVC-CMV; PRVC-SIMV, VS)
Dual Level PEEP (SPAP)
Breath Triggering

Pressure triggering : 0.5 – 20 cmH2O
Flow triggering : 0.1 – 25 lpm
Additional Settings

Respiratory rate : 0 – 150 bpm
Tidal volume : 2 – 2000 ml*
PEEP / CPAP : 0 – 50 cmH2O
Pcontrol : 2 – 90 cmH2O*
Psupport : 0 – 90 cmH2O
Peak flow (mandatory) : 1 – 120 lpm*
Peak flow (spontaneous) : Up to 180 lpm*
I-Times : 0.1 – 10 sec
Oxygen concentration : 21 – 100%
Rise time settings : 1 – 20
Exhalation sensitivity % : 10 – 80% (spontaneous peak flow)
Base Flow (with leak comp off) : 2.5 – 25 lpm
Plateau (insp pause) : 0 – 42 sec (0 – 70%)
PS Tmax : 0.15 – 5.0 sec*
Additional Features

Work of Breathing, Imposed
Reference Loop Save Feature
Maneuvers: PO.1 and PiMax
Auto Control
Apnea Backup Ventilation
SPAP Philosophy Options: Time, Cycle + Time, Cycle + I:E
IBW Calculator
NIV On/Off in all Modes
Active Exhalation Valve
Automatic Leak Compensation (up to 60 lpm)
User defined flow sensor position
– Proximally at the circuit Wye

– Distally at the Expiratory Port

Advanced Software Features (Optional)

Volumetric Capnography (VCO2)
Time Based Capnography (ETCO2)
Tube Compensation
Spontaneous Breathing Trial (SBT Mode)
Suction Support
Recruitment Maneuver Tools
– Pressure Slow Inflation / Deflation Maneuver

– Volume Slow Inflation / Deflation Maneuver

User Initiated Functions

Manual inspiration
Inspiratory and expiratory breath holds
Alarm silence
100% Oxygen* (+20% Oxygen (Neonate))
Standby
User Configurable Graphic User Interface (GUI) and Functions

Multiple Easy View Tabs (Home, Settings, Alarms, Maneuver and Config)
Manual & Automatic Time Based Event Markers
Graphics Display 3 (Waveforms, Loops, Data, Trends, Trends Tabs and Event Markers)
Apnea Back-up
Smart Nebulizer™*
Smart Sigh™
Humidification Selection (HME, Humidifier, and None)
Heliox 0 – 80%*
EtCO2 Graphics Display 2 loops, 3 waveforms
PaCO2 Time Stamp Entry
User Defined Custom Default Settings
Monitored / Displayed Data

Delivered oxygen concentrations: 21 – 100%
Trend Data (1-72 hrs.) (46 trend parameters)
Monitoring Data (53 monitored parameters)
Basic

Respiratory Rate
Vti + Vte
PEEP
O2
Ve
Ppeak
Pplateu
Pmean
I : E
PF + PFe
Ti + Te
Leak
Mechanics

Cdyn
Cdyn / kg
Cstat
Cstat / kg
C20/C
Ptrach + Pmin
Auto PEEP
HeO2
Vti / kg
Vte / kg
Ve / kg
Rinsp + Rexp
Weaning

Ve Spont
Rate Spont
RSBI
Ti / Ttot
RCe
Spont % 1h
Spont % 8h
WOBimp
PO.1
PiMax
PO.1 / PiMax
ETCO2

PetCO2
VCO2 /min
VtiCO2
VteCO2
FetCO2
Vd ana
Vd alv
Vd/Vt
Valv
Valv/min
PeCO2
– FeCO2
Real Time Graphics

Flow Volume loop
Pressure Volume loop
Pressure Flow loop
Volume + time
Flow + time
Pressure + time
EtCO2 Real Time Graphics

PCO2 Volume loop
FCO2 Volume loop
PCO2 + time
FCO2 + time
VteCO2 + time
Prioritized Alarms (High, Medium and Low)

Auto set alarm feature & 1000 Event log
Communication Interfaces

Ethernet and Nurse call, RS232
Integrated CliniNet® Server with SNMP
CliniNet® Virtual Report™ (Optional Remote Viewing System Software)
Physical Data

AC power: 100 – 240 VAC (50/60Hz)
Internal and Optional External Battery
Screen: LCD 12.1” / Tiltable and Rotatable Touch Screen
Internal compressor (Optional)
Integrated Cart
Battery backup on compressor 120min
Gas supply: 2 – 6 Bar
Ordering Information

Model F7300000-7i-S : Inspiration 7i Ventilator – 12.1” Screen
Model F7300000-7i-S-NC : Inspiration 7i Ventilator – 12.1” Screen without internal compressor
