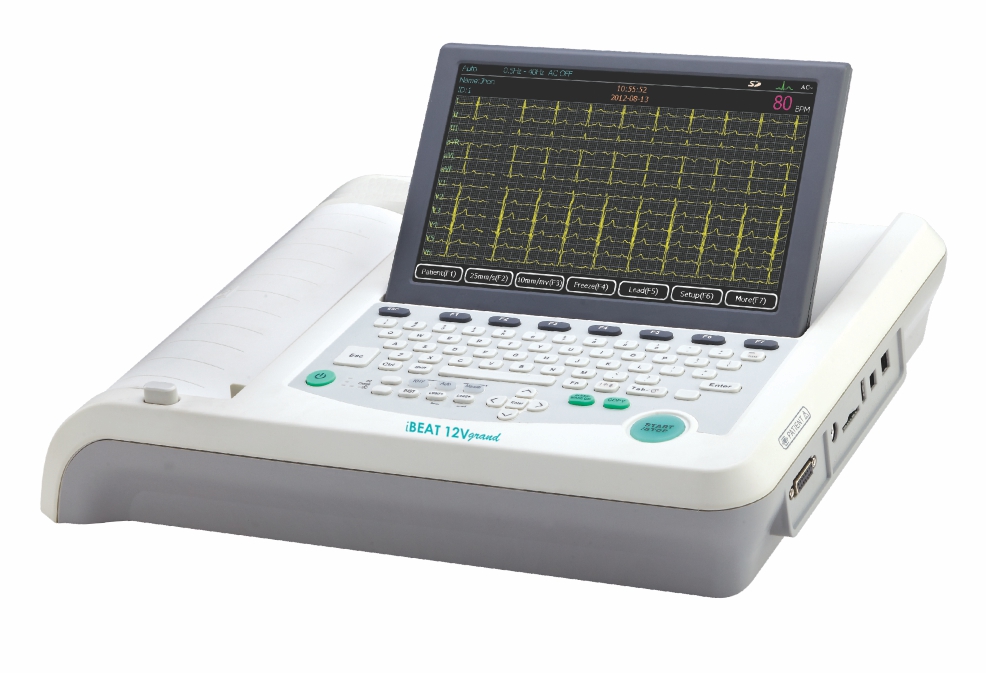

iBeat 12V Grand

iBeat 12V Grand is the ECG Recorder with 10″ Display which helps to preview the ECG before taking printout. And it offers huge storage upto 10000 ECGs in XML/PDF/BMP formats in the inbuilt SD Card.

Benefits

Delivers Precise ECG Reports

Features

• 12 channel ECG recording and have simultaneous acquisition of all Leeds and display
• Automatic: 12CHX1,6CHX2+1R, 6CHX2,3CHX4+3R
• 3CHX4+1R,3CHX4
• Manual: 12CH, 6CH,3CH, 1CH+1R, 1CH
• any Lead can be selected as Rhythm Lead
• Built in thermal Matrix printer
• USB SLAVE port can be connected to PC-ECG software (optional)
• USB MASTER port can be connected to an external USB printer supporting PCL6 language to
• print 12 leads ECG reports on A4 paper (optional)Network transmission (optional)

Specification

Simultaneous 12 leads ECG acquisition and display
Printing on 210mm/213mm thermal paper (Roll or Z-fold)
10 inch 800×480 TFT color LCD
Alpha-numeric keyboard
Built-in 4G SD card, save up to 10,000 ECG reports in XML/PDF/BMP format (optional)
Built-in rechargeable lithium battery (print up to 360 ECG reports)
Pacemaker detection
Precise ECG auto-interpretation program
USB Slave port can be connected to PC-ECG software (Optional)
USB Master port can be connected to an external USB printer supporting PCL6 language to print 12 leads ECG reports on A4 paper (Optional)
Network transmission (optional)
Software upgrade automatically via SD card
