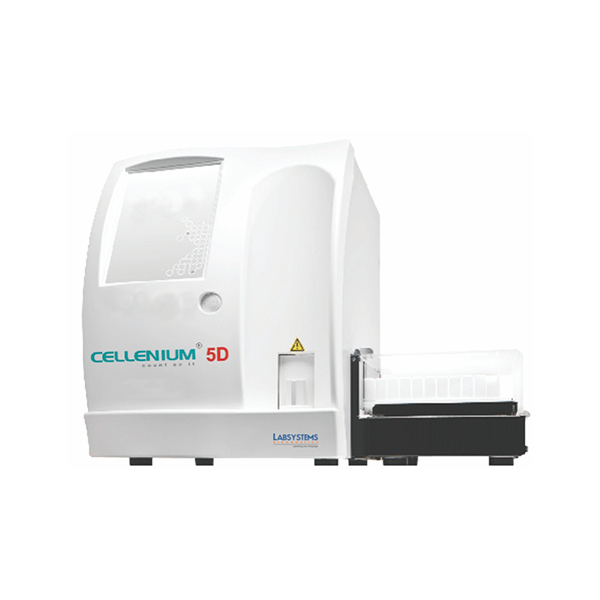

Cellenium 5D

5 Part WBC differential analyser

Benefits

• Accurate and Precise results
• Proven impedance measurement technology with advanced flagging algorithms
• Patented optical laser based WBC differential technology
• Clog detection and prevention with automatic system cleaning processes
• Advanced sample aspiration flagging checks
• Field upgradeable with autosampler and small sample volume modules
• User friendly and easy to operate
• Uses a high resolution touch screen with easy to follow internationally recognized icons
• Recording sample and quality control information is fast and efficient
• Information can be uploaded from a USB, QR code or via a bi-directional LIS connection
• Printing of results does not stop the measuring process. Print format can be customized
• Advanced software statistics provide comprehensive graphical QC analysis

Operator safety

Autosampler and Cap piercing mode validated for several sample tube types e.g. Monovette, Vacutainer,Vacuette plus BD MAP tube if small sample module fitted

Self-cleaning procedures minimize daily maintenance

Reduced risk of biohazard exposure

Confidence

System uses easy to understand warning messages and sample flags

Employs a comprehensive QC SW package

Offers (3 levels) of user access rights/authority levels

Automatically manages on-board reagent status and lot/expiration dates

Designed to use specific Trivitron reagents to deliver the highest quality results

Features

• The Cellenium 5D system is a compact, bench top, 60 test/hour, 5-part laser WBC differential analyzer with two sampling modes: a cap-piercing mode for closed tube sampling and another for open tubes.
• The Cellenium 5D can be enhanced to meet your changing needs by adding an autosampler and/or a small sample volume module.
• The Cellenium 5D has a large color touch screen with an easy to follow, intuitive icon user interface. This system is an ideal solution for most hospitals, laboratories and satellite clinics that look for more advanced technology, reliable, safe, accurate and easy to use instrumentation.

Specification

MEASURING DATA

Throughput – 60 tests/hour
Parameters – CBC+5 DIFF mode, 2 histograms: RBC, PLT, 2 scattergrams: 4 diff, BASO, 26 parameters: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDW-sd, RDW-cv, HGB, MCH, MCHC, PLT, PCT , MPV, PDW-sd , PDW-cv , P-LCC , P-LCR

MEASURING PRINCIPLE

Laser light scatter technology for 5-part WBC differential
Impedance method for CBC: WBC (80 µm), RBC and PLT (70 µm)
Light absorbance for HGB measurement

REAGENTS AND SAMPLING SYSTEM

Samples

Sample volume – 110 µl of whole blood
Closed and open tube sampling, optional autosampler
Calibration – Stat & Autosampler mode, specific control material (external reference – optional)
Pre-dilute software option for small samples
Reagents

Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse

QUALITY CONTROL

Separate QC database
Levey-Jennings graphs

TECHNICAL FEATURES

Multiuser mode – Multilevel user modes with individual identification (username, password)
Data storage capacity – 100,000 records
Printout – External, Microsoft Windows compatible printers
External keyboard – PS/2 or USB
Interfacing capabilities – RS232, USB, Ethernet
Software upgrade – via USB port (USB memory stick)
Operating environment – Temperature: 15–30°C
Relative humidity – max 80% (non-condensing)

USAGE

User interface – 600 x 800 color graphics LCD touch screen (10.4”)
Multilingual user interface English, French, Spanish, Croatian, Hungarian, Italian, Polish, Portuguese, Russian, Turkish, Chinese, German, Greek

DIMENSIONS

Size (Width x Depth x Height) 40 cm x 50 cm x 45 cm 16 in x 20 in x 18 in
Weight: 35 kg, 77 lbs

OPTIONS

Autosampler

Sample capacity -100 tubes: 10 racks with 10 sample tubes each
Acceptable primary tubes – Monovette, Vacutainer, Vacuette
Built-in barcode reader
Built-in sample mixer
Cap recognition (only capped tubes are mixed and processed)
Size (Width x Depth x Height): 30 cm x 30 cm x 18 cm 12 in x 12 in x 7 in
Weight: 10 kg, 22 lbs
Small sample module

Cellenium 5D with SSM module – Cat No. A5SSM-1
Aspirated sample only 25µl (standard 110µl)
The module can either be added during manufacture or retro-fitted to analyzers already in the field.
