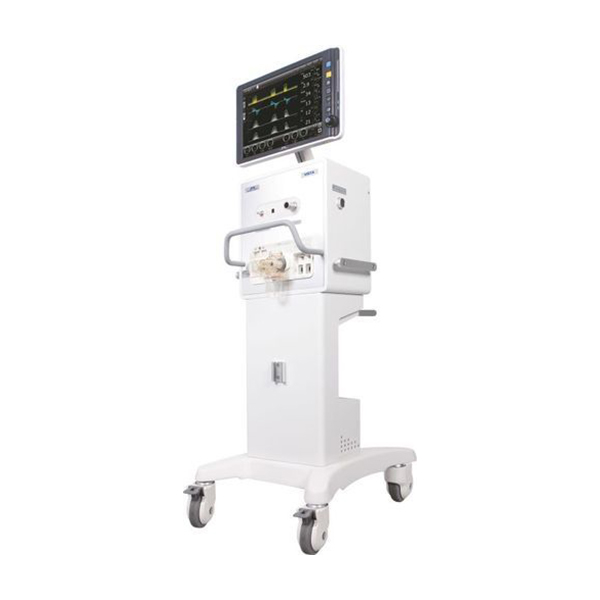

Allied ICU Ventilator

Product Details:

Minimum Order Quantity: 01 Unit

Modes of ventilation: AV(PC), AV(VC), CMV(PC), SIMV(VC), CMV(VC)

Model No: Vista

Usage/Application: ICU

Display Type: Touchscreen

Patient Age Group: Neonatal To Adult

Power Source: AC & DC

Voltage (V): 100 to 240 VAC

Weight (kg): 51

Frequency (Hz): 50/60 Hz

Breathing Frequency: 0-150 bpm

Tidal Volume (ml): 2-2500 ml

Automation Grade: Automatic

Number Of Wheels: 4

Tidal Volume: 20 To 2000 Ml

Display Size (Inch): 15

Battery Backup (hr.): 3

Flow Range (m per sec.): 180

Trigger Sensitivity Flow (L per min.): 20

Alarm: yes

Is It Portable: Portable

Brand: Allied Medical

Battery Back Up: 180 min

Condition: New

Air Compressor: Yes

Place Of Origin: UK

Ventilation modes: VCV,PCV,SIMV(V)+PS,SIMV(P)+PS,SPONT/CPAP,Sigh PRVC,BIPAP,NPPV,APRV,A/C,Standby,Manual

Drive mode: Pneumatically driven,electronically controlled

Ventilation frequency: 1 to 100 bpm

Inspiration time: 0.1 to 10S (increment0.1S)

Flow trigger: 0.1 to 20L/min

Pressure trigger: -20~0 cmH2 O

Pressure control: 5 to 70 cmH2O

Pressure support: 0 to 70 cmH2O

Electronic PEEP: 0 to 50 cmH2O (increment 1 cmH2O)

Nebulizer: 30 minutes

Direct access buttons: 100% O2 2 min,Inspiration hold,Expiration hold,Manual,Key Lock

Waveform: Standard P-T,F-T,V-T,Optional SpO2 -T,EtCO2 -T

Loop: Standard P-V,F-V,F-P,Optional Volume-EtCO2

Trend: Peak,FiO,PEEP,MV,V,V 2 TE TI

System Log: 1000 events (setting and alarm)

Communication Interface: VGA,RS232,RJ45

Screen: 15 inch TFT touch screen

Internal Battery Backup: 180 Minutes

Height: 1423mm

Width: 499mm

Depth: 599mm

Net weight: 51 kg (without compressor)

Power: AC 100~240V,50/60Hz,DC 12V,4.4Ah

Air and O Supply: Pressure 2.8 to 6kPa,Flow Greater Than 50L/min

Temperature: Operation 10 Deg C to 40 Deg C,Storage -20 Deg C to 55 Deg C

Humidity: Operation Less Than 80%,non-condensing,Storage Less Than 93%
Specification

Features:

• Invasive and Non-Invasive Ventilation
• Large Color 15″ Touch Screen
• Ventilation Modes – PACV, PSIMV, VACV, VSIMV, Spont, Apnea Back-up ventilation, O2 Stream, PRVC, Bi-Level, AwPRV, AutoVent, TCPL-AC, TCPL-SIMV, PRVC-SIMV, CPR, HFV
• Tidal Volume Range from 2-2500ml in Volume Control Mode
• Integrated Alarms& 1,000 event log
• Integrated Battery backup upto 180min
• Waveforms for Pressure vs Time, Flow vs Time and Volume vs Time
• Spirometry Loops for Pressure-Volume, Flow-Volume and Pressure-Flow
• Trend Data-VE/min, Pmean, Ppeak, PEEP, Vte, RR, CL, RA, SpO2, PR, iCO2, EtCO2
• Measuring Data- P0.1 measurement, Exp.Flow, RSBI, CL, RA, WOBV, WOBP
• Apnea Backup
• Pneumatic Nebuliser

Optional:

• Ventilator Compressor
• Humidifier
