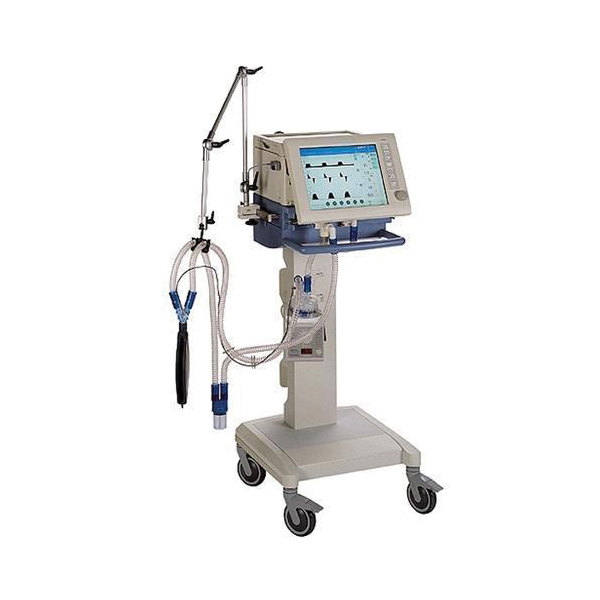

Drager EVITA 4 Ventilator

SKU: MP20435

Sign in to view price


Ask for Quote

Product Details:

Modes of ventilation AV(PC), CMV(PC), CMV(VC), AV(VC), SIMV(VC)
Operation Mode Electricity Operated
Patient Age Group Adult
Application ICU, Portable
Type Mechanical

The SERVO-i Ventilator family addresses the very different requirements of neonatal, pediatric and adult needs from a single Drager EVITA 4 Ventilator platform. All four configurations are the same ventilator, equipped with different functions. They can be customized and upgraded with different options for future needs. (SERVO-i Adult and SERVO-i Infant can also be upgraded to SERVO-i Universal.)

Parameter settings: Setting range:

  • Parameter:
  • Inspiratory tidal volume (ml): 100 – 2000
  • Inspiratory minute volume 0.5 – 60
  • (l/min):
  • Apnea, time to alarm (s): 15 – 45
  • Automode Trigger timeout (s): 7 – 12
  • PC/PS above PEEP (cmH2O) 0 – (120 – PEEP)
  • PC/PS above PEEP in NIV 0 – (32 – PEEP)
  • (cmH2O)
  • PEEP (cmH2O) 0 – 50
  • PEEP in NIV (cmH2O) 2 – 20
  • CPAP pressure (cmH2O): –
  • CMV frequency (breaths/min): 4 – 100
  • SIMV frequency (breaths/min): 1 – 60
  • Breath cycle time, SIMV (s): 1 – 15
  • PHigh (cmH2O) (PEEP +1) – 50
  • THigh (s): 0.2 – 10
  • TPEEP (s): 0.2 – 10
  • PS above PHigh (cmH2O): 0 – (120 – PHigh)
  • O2 concentration (%): 21 – 100
  • I:E ratio: 1:10 – 4:1

Parameter: Setting range:

  • Oxygen breaths: 100% for 1 minute
  • Initiation of 1 breath (In SIMV
  • mode initiation of 1 mandatory
  • breath) Start breath:
  • Pause hold: Insp. or exp (0 – 30 seconds)
  • Alarm silence/reset: 2 minute silence and reset of
  • latched alarms
  • Compliance compensation: On/Off
  • Automode (optional with Automode On/Off
  • Universal Basic Edition):
  • Nebulizer (optional) 5 – 30 min./Continuous/Off
  • Backup ventilation Backup On/Off

Backup settings Parameter: Setting range:

  • Inspiratory tidal volume (ml): 100 – 2000
  • PC above PEEP (cmH2O) 5 – (120 – PEEP)
  • PC above PEEP in NIV 5 – (32 – PEEP)
  • CMV frequency (breaths/min): 4 – 100
  • I:E ratio: 1:10 – 4:1
  • TInsp (s): 0.1 – 5
  • (Source: Drager Medical)
