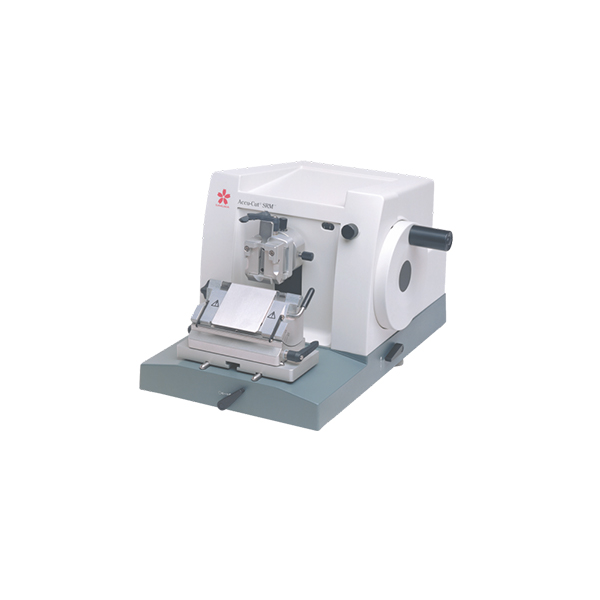

AccuCut SRM 200

The Accu-Cut® SRM™ 200 Rotary Microtome is used to thin section in microns the specimen embedded in the paraffin block. Routinely, most specimens are sectioned at 3-5 microns. To accomplish this procedure, the paraffin block the cassette backing is mounted in a moveable chuck. Chuck movement is up and down past a blade edge and front and back movement in given micron increments. Given this movement, the block is sectioned during each pass across the blade edge. The result is a “ribbon” of successive sections each section being “x” number of microns deeper into the block than the preceeding section.

The Accu-Cut® SRM™ 200 is a manually operated rotary microtome.

FEATURES

• Training Mechanical Trimming Function (10 & 50 μm)
• Specimen Retraction
• Service-friendly
• Low maintenance design
• Quick release specimen clamping
• Quick locking lever

BENEFITS

• Locking the hand-wheel quickly, safely in any position

Specification

• Section Thickness Range: 0.5 – 60 µm
• Section Thickness Selection Increments: From 0 to 2 µm in 0.5 µm
• From 2 to 10 µm in 1 µm
• From 10 to 20 µm in 2 µm
• From 20 to 60 µm in 5 µm
• Coarse Feed Advance: Clockwise
• Horizontal Specimen Advance: 25 mm
• Vertical Specimen Stroke Length: 59 mm
• Specimen Retraction: 220 µm
• Clearance Angle for Blade Holder: 0 -10°
• Specimen Orientation: Three-axis orientation
• Horizontal: 8°
• Vertical: 8°
• Rotation: 90°
• Micron Thickness Setting: Adjustable with visual display
• Trimming Steps: 10 µm, 50 µm
• Displacement of Blade Holder Base: North/South: Maximum: 55 mm (Vertically) with all adapters attached: 40 mm East/West:45 mm
• Dimensions: WxDxH (40x47x29.5cm)
• Working Height: 10.5 cm
• Weight: 29Kg
