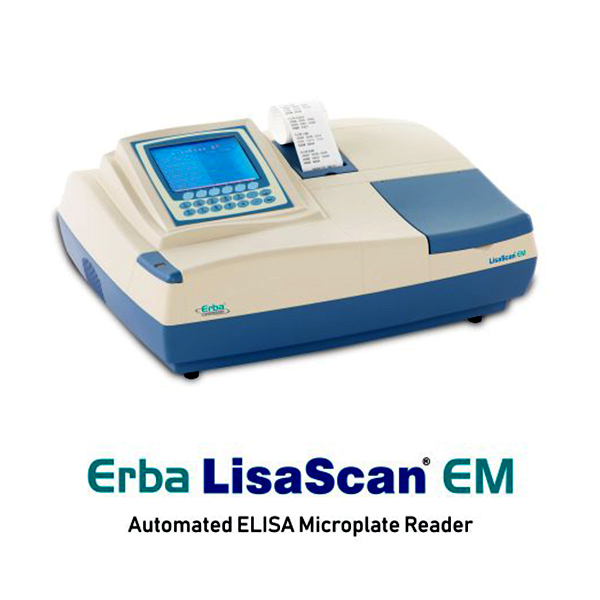

Semi Automated Elisa Plate Reader Model: Erba Lisa Scan

The LisaScan EM Microplate Reader is an economical, compact and versatile 8 channel ELISA reader which can be adapted to various ELISA applications.

It is India’s largest selling automated microplate ELISA reader

Product Features:

• Wavelength Range: 400 to 750nm with a dynamic measurement range of 0.0 to 4.0 O.D
• 100 user-programmable test storage
• Inbuilt thermal printer for reports & graphs
• Auto self-check on start-up & external printer connectivity
• Compatible to various plate geometrics-96 well microplates ( Flat, U & V bottom)
• Wavelength selection: Monochromatic, bi-chromatic & multi-chromatic*
• Reading time 8 sec. for single wavelength using 8-channel optics
• User-friendly inbuilt operation software with 7000 sample test results storage
• User interface: High Resolution LCD display with 20 Keys Rugged waterproof & membrane panel
• Computer linked ELISA data management software – Eli-LIMS*
• CE marked
• Inbuilt shaking facility,Three Linear Speeds – Low, Medium and Fast
• Reports can be printed using internal thermal or external printer
• No need of manual calculations and documentation
• Documentation ease – Reports can even be stored using optional Eli-LIMS software
• Computer can be connected
• Extensive ELISA data management

Product Applications:

ELISA

Technical Specification

System type: Open System

Plate types: 96 well plates

Wells Type: U, V and Flat bottom wells

Operating Modes:

• Absorbance
• Quantitative
• Qualitative
• Semi-Quantitative
• Kinetic Mode

Measurement Modes: Continuous / Step

Shaking Modes: Three Linear Speeds – Low, Medium and Fast. Time duration can be set

Wavelength Selection:

Monochromatic

Bi-Chromatic

Multi-Chromatic* (Maximum 4)

Calculation Modes:

Non-linear Standard

Cut-off

Index Formula

Column Subtraction

Linear Regression

Point to Point

Cubic Spline

Linear – Log

Blank Options:

Blank, Control, Assay

Validation equations

Against Air, Well

Plate, Column, Column-mean

Row, Row mean

Number of programmable standards / calibrators: Up to 10 standards /test Storage/ display/ printing of multi standard curves and cut-off equations for all parameters

Test Programs: 100 totally “open” Test Programs

Photometer:

Measuring system: 8-Channel optical system

Lamp Source: Tungsten Halogen with Lamp saver function

Wavelength Range: 400 to 750 nm

Standard Filters: 405 nm, 450 nm, 492 nm, 630 nm (Optional two filters 578 nm, 700 nm), 10 nm Band Pass

Dynamic Range: 0.0 ~4.0 OD

Photometric accuracy: < 1% at 2.5 OD at 450 nm

Photometric resolution: 0.001 OD

Linearity: <1% at 2.5 OD at 450 nm

Measurement Time:

SPEED : 8 Seconds single wavelength

NORMAL : 17 Seconds single wavelength

Display:

High resolution Graphics LCD 320×240 pixels, LED Backlight, View area: 120×92 mm

Keyboard: Rugged waterproof & membrane panel

PC Communication: USB Based

Protocol compatible with Eli-LIMS and TNW

Built-in Thermal Printer: Built in High resolution, 384 dots per line, thermal Type with full graphics facility printer and option for connecting External Parallel Printer (or USB Printer using External Adaptor).

Computer interfacing Software: Windows Based Software Eli-LIMS with data managemenOptional Windows Based Software with data management capabilities to store patient results, store/display calibration curve /QC curves.

Reports on internal and external printers: Report generation for last 7000 Sample’s is viewed/printed/stored.

Lab name in Print-out

Lab name in Display

Collated reports

Print-out of Normal Range along with the result (on external printer only).

Graphs can be printed on Thermal Printer

Sorted by:

Date

I.D.

Both by Date & I.D.

Test

Plate ID

Online Help: At each step on-line help in each menu. Beeps and online instructions on erroneous entry. Special HELP key on keypad.

Operating Temperature: 20˚ C to 40˚ C

Storage Temperature: -10˚ C to 50˚ C

Humidity: Max. 80% RH, non- condensing

Power Supply: 16 V – 24.5 V DC using External Auto ranging SMPS adapter

115/230VAC ±10%, 50/60Hz., Max. 90 Watt. (CE & UL certified)

Dimension: 502 mm X 369 mm X 216 mm

Weight: 7 Kg
