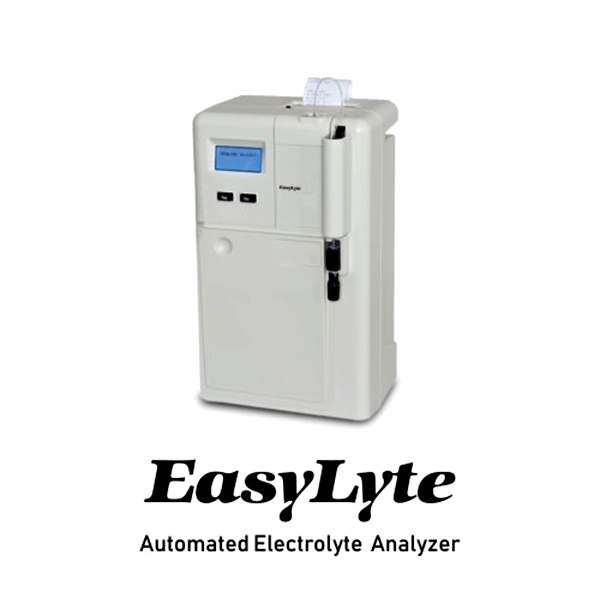

Semi Automated Electrolyte Analyzer Model: Easylyte Plus

EasyLyte analyzer is a completely automated, microprocessor-controlled electrolyte system that uses ISE (Ion Selective Electrode) technology to make electrolyte measurements. The EasyLyte measures combinations of Na+, K+, in whole blood, serum, plasma, or urine.

EasyLyte incorporates state-of-the-art electronics and an innovative ergonomic design that differentiates it significantly from competitors. The analyzer also stores quality-control data that is easily accessible. Patient histories are immediately retrievable for evaluation.

EasyLyte analyzers combine simple yes/no prompted operation, low maintenance, and high reliability into one economical design.

Product Features:

• EasyLyte is Easy to Use, Easy to Operate, Easy to Maintain
• The entire menu is driven by 2 simple buttons
• Results are displayed on LCD screen as well as printouts
• EasyLyte does 2 point as well as 1 point calibration
• Facility to analyze different type of samples: whole blood, serum, plasma ,urine samples EasyLyte has capillary and syringe sampling facility
• EasyLyte has auto probe wiping facility
• Analysis of electrolytes is done using 100ul of blood and 400ul of diluted urine
• Rate of analysis 55 secs per sample
• Analyzer is capable of storing 128 patients data with trilevel QC results
• Analyzer has modular plug in reagent pack system
• EasyLyte has facility for auto calibrations with a programmed interval of 4 hrs and also calibration on demand
• Analyzer has facility to upgrade to a walk away Electrolyte station by use of Auto Sampler
• It has a built in thermal printer and a RS 232 port for interfacing

Product Applications:

Available parameters in combinations are Na / K / Cl / Ca / pH / Li

Product Details

Product Specification

Model Name/Number: EasyLyte

Brand: Transasia

Automation: Automated

Calibration: Automatic or On-Demand

Dimensions: 9.5″W x 16.5″H x 8.0″D (24 cm W x 42 cm H x 20 cm D)

Method: Direct measurement by Ion Selective Electrode (ISE)

Sample Type: Whole Blood, Serum, Plasma or Urine

Weight: 13 lbs. (5.8 kg)

Data Storage: Patient Results: Upto 128 samples, QC Results: Upto 20 each Normal, Low and High

CLIA Classification Moderate Complexity

Sample Size: 100 micro L Whole Blood, Serum, Plasma, 60 micro L capillary or 400 micro L diluted (1:10) Urine

Output: 128 x 64 pixel graphic display, 24 column thermal printer, Serial port (RS-232), EasySampler port

Ambient Temperature: 15 to 32 deg C

Ambient Humidity: <85%

Power Supply: 100-240V AC 50/60 Hz, 0.8A
