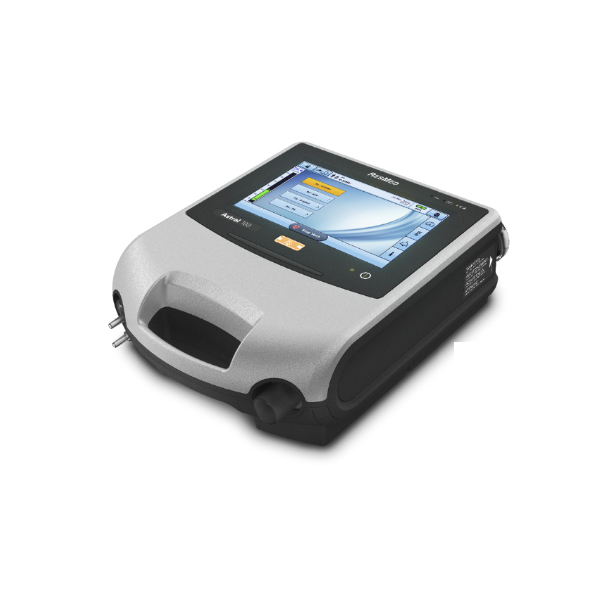

ResMed Astral 100 Ventilator

Product Details:

The Astral 100 Adult and Pediatric Ventilator is a portable, lightweight, and user-friendly respirator designed for patients above 11 lbs (5 kg). With an eight-hour internal battery weight of only 7.1 lbs, the Astral has the best battery-to-weight ratio on the market. Combined with the two optional eight hour external batteries, the ventilator can run for a total of 24 hours.

Product Benefits

• Exceptional battery life and portability
• Steamlined setup and operation
• Excellent leak compensation
• Provides a comprehensive picture of patient’s condition
• Intuitive, easy to read touchscreen display

Product Specifications and Dimensions

Circuit

• Single Circuit with Leak
• Single Circuit with Valve

Therapy

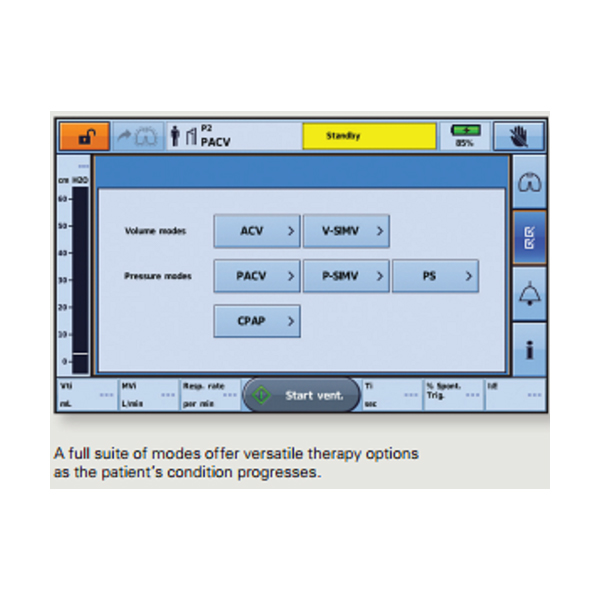

• Valve Circuit Therapy CPAP, ACV, PACV, P-SIMV, V-SIMV, PS
• Leak Circuit Therapy CPAP, ST, PAC
• Apnea Ventilation Volume and Pressure
• Preset Programs 2

Pressure and Range Settings

• DeliveredPressure (cm H2O) 2-50 (Leak Circuit) and 0-50 (Valve Circuit)
• Delivered Tidal Volume (cm H2O) Adult 100 to 2500 mL and Pediatric 50 to 300 mL
• Respiratory Rate Adult Off, 2 to 50 bpm and Pediatric Off, 5 to 80 bpm

Data

• SpO2 Monitoring Optional
• FiO2 Monitoring Optional
• 7 Days of High-Resolution Data with 25H2 Pressure and Flow On screen and download
• 365 Days of Summary Data On screen and download

Alarms

A wide range of settable alarms are available including FiO2 and SpO2 when connected.

Functions Available

Vsync and TiControl

Closely capturing the dynamic nature of leak, Vsync technology accurately compensates for fast-changing and unstable leak, delivering the right flow at the right time, so that patient-device synchrony is maintained.

• Together, Vsync and TiControl offer extra assurance and control over your patient’s inspiratory time, promoting reliable device-controlled synchrony
• Treats patients with NMD, OHS, COPD diseases
