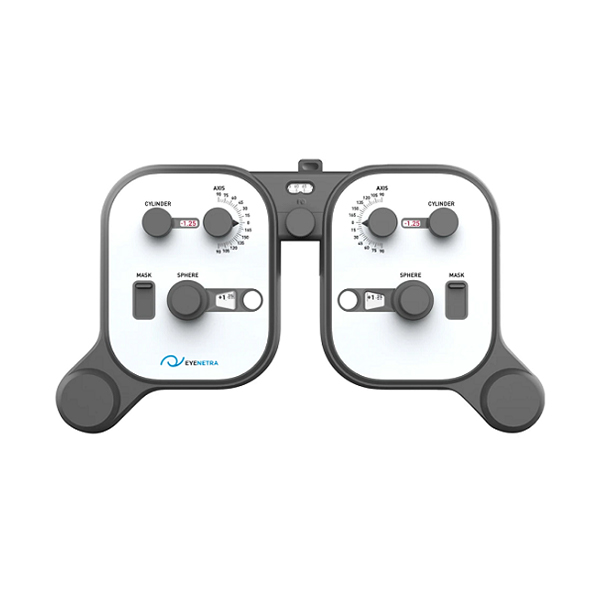

Portable Handheld Phoropter
MPIN: MP30544
Sign in to view priceAsk for Quote

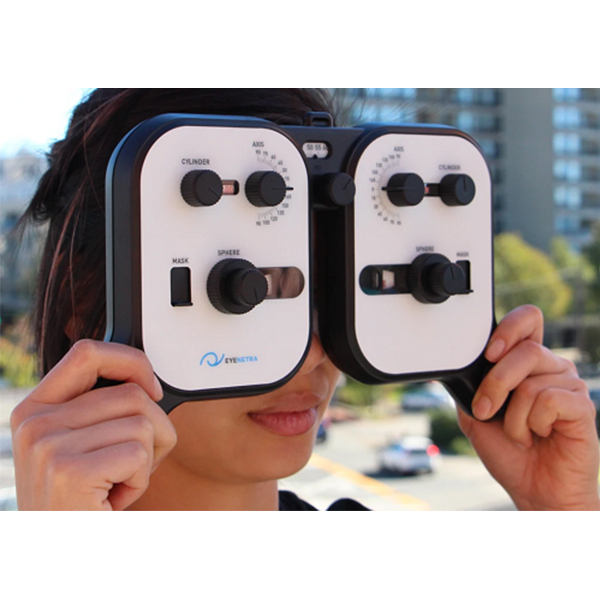

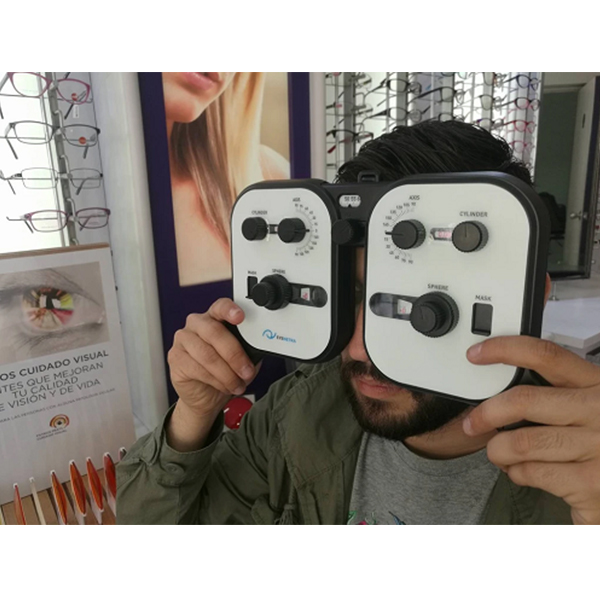

Running visual acuity tests has never been easier. Replacing the trial lens kit, our Phoropter can be utilized for distance and reading tests as well as monocular and binocular readings. Extremely lightweight, it is designed to be held by the patient. The lenses are molded and polished with high-precision tools and offer a wide range of lens powers.
See it in Action!
Products Overview Video (Webinar style)
Specification
| Technology | Trial Lens Stack (25 lenses per eye) |
| Measuring Wavelengths | ~350nm to ~750nm (Broadband) |
| Sphere Range | -10.75 to +5.00D, 0.25D increment |
| Cylindrical Range | 0 to -6D, 0.25D increment |
| Axial Range | 0 to 180, 1 degree increment |
| Pupillary Distance Range | 52 to 72mm, 1mm increment |
| Visual Field | ~20 Degrees (14mm aperture) |
| Acuity Measurements | Binocular and Monocular |
| Vision Test Type | Distance and Readers |
| Device Dimensions | 5.0cm x 7cm x 10cm (550g) |
| External Processing Unit | None |
| Setup Time | 10 seconds |
| Coatings | Anti-Scratch, Anti-Reflective (Optically Sealed) |
| Calibration Requirements | None |
| Power Requirements | None (Manual Setup of Lenses) |
| Specialized Furniture Requirements | None (Handheld) |
| FDA Status | Product Listed as Class 1 exempt |
| Clearance in Europe | CE marked per applicable requirements of Europe’s Medical Device Directives |
