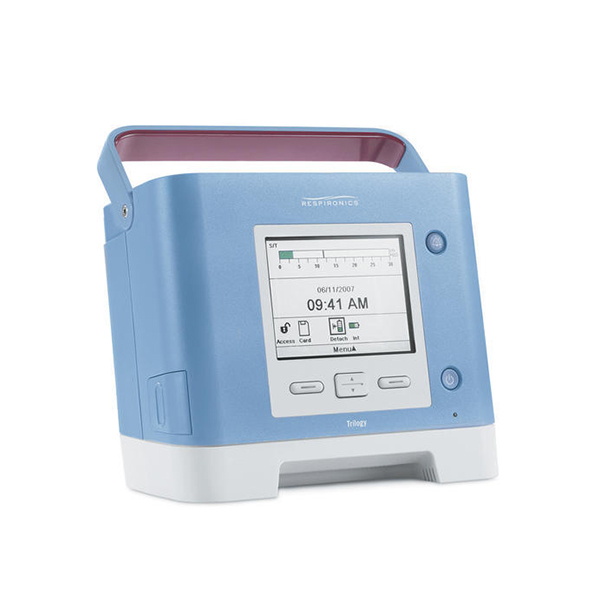

Philips Respironics Trilogy 100 Ventilator

Product Details:

• Pressure modes CPAP; S; S/T; T; PC-SIMV (w/PS) IPAP 4 to 50 cm HO
• Volume modes AC; SIMV (w/PS); CV
• EPAP for active circuits 0 to 25 cm HO
• EPAP for passive circuits 4 to 50 cm HO
• CPAP for passive circuits 4 to 20 cm HO
• PEEP for active circuits 0 to 25 cm HO
• PEEP for passive circuits 4 to 25 cm HO
• Pressure support differential 0 to 30 cm HO Alarms
• Temperature 5 – 40 °C
• Relative humidity 15 – 95 %
• Atmospheric pressure 110 to 60 kPa Controls
• Circuit types Active with PAP; passive
• Circuit disconnect Off; 10 to 60 sec
• Apnea rate Off; 10 to 60 sec
• High tidal volume Off; 50 to 2000 ml
• Low tidal volume Off; 50 to 2000 ml
• High minute ventilation Off; 1.0 to 99 l/min
• Low minute ventilation Off; 0.5 to 99 l/min
• High respiratory rate Off; 4 to 80 beats per minute
• Low respiratory rate Off; 4 to 80 beats per minute Measured patient parameters
• Respiratory rate 0 to 80 beats per minute
• Tidal volume 50 to 2000 ml
• Breath rate 1 to 60 for AC mode; 1 to 60 for all other modes
• Minute ventilation 0 to 99 l/min
• Leak rate 0 to 2000 l/min
• Inspiratory time 0.3 to 5.0 sec
• Ventilation types Volume control; pressure control; bilevel
