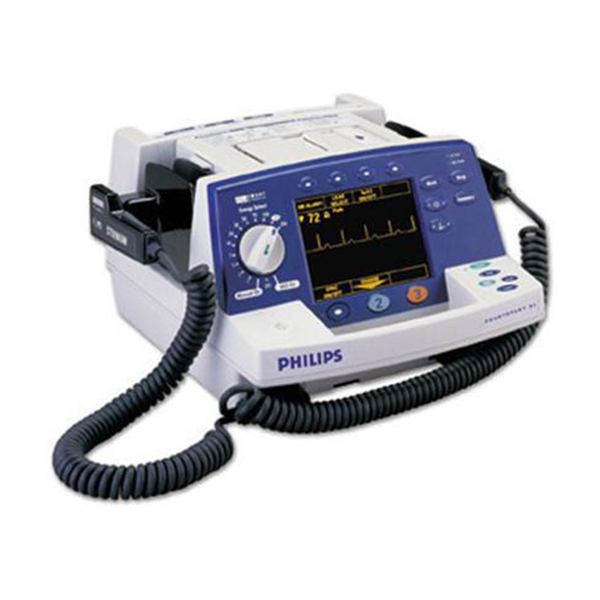

Philips HeartStart XL Defibrillator

The Philips HeartStart XL defibrillator is a small, user-friendly monitor and defibrillator. Philips’ HeartStart XL reaches maximum power in only three seconds. With an array of AED possibilities, text messages, patient data storage, and voice directions, the Philips HeartStart XL is sure to fulfill all your defibrillation needs. Additional features of the HeartStart XL include

• ECG monitoring with display for multi-wave view
• Manual and AED operation modes
• Printable patient event summary
• Internal data storage in the HeartStart XL

Defibrillator

• Waveform Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance
• Shock Delivery Via multifunction defib electrode pads or paddles
• Charge Time Less than 3.5 seconds to 200 Joules with a new, fully charged M3516A SLA battery pack at 25C; Less than 15 seconds to 200 Joules when powered by AC with no battery installed
• Patient Impedance Range Minimum – 15 Ohm (internal defibrillation); 25 Ohm (external defibrillation); Maximum – 180 Ohm

SpO2 Pulse Oximetry

• Wavelength Range 500 – 1000 nm
• Resolution 1%

Dimensions

• Width 14.8 in/37.6 cm
• Depth 13.7 in/34.6 cm
• Height 7.5 in/19 cm
• Weight 13.3 lbs/6.0 kg, including battery and full roll of paper

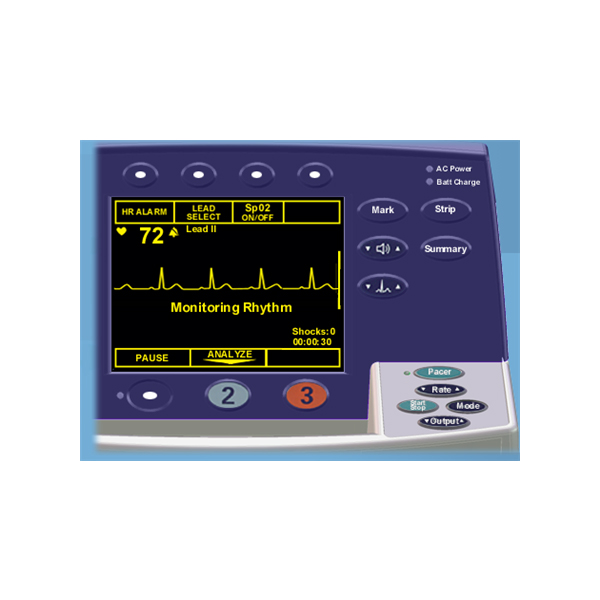

Display Screen

• Type LCD – TFT Color Liquid Crystal Display
• Size 111.4 mm x 83.5 mm
• Resolution 320 x 240 pixels
• Sweep Speed 29 mm/s nominal (stationary trace; sweeping erase bar)
• Viewing Time 4 seconds
• Machine available on rental basis also
• Warranty and Service available on pan India basis
