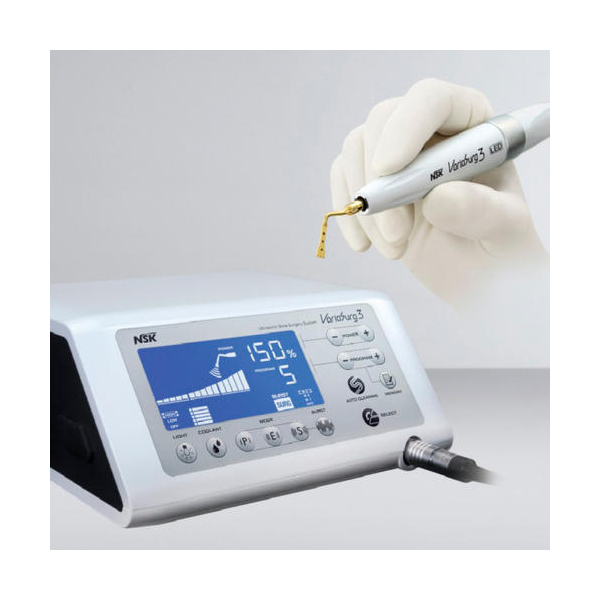

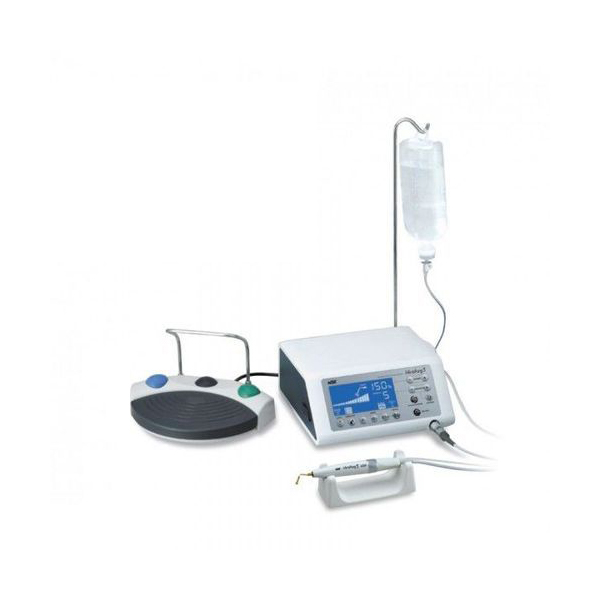

NSK Variosurg 3 – Piezo Surgery Unit

NSK Variosurg 3 (OPTIC) – Piezo Surgery Unit

Powerful Ultrasonic Surgical System with LED Illumination

Exceptional Power for Faster. More Accurate Procedures.

VarioSurg3 maintains the light weight and slim handpiece design of its predecessor and the same excellent balance and grip but has 50% more power than the previous model. The exceptional power VarioSurg3 enables precise, stressfree surgical procedures even when approaching hard bone in delicate areas. The compact body offers a wide variety of functions. The large backlit LCD display & intuitive controls help reduce operating errors & make procedures safer.

Applications

• Bone surgery
•  Sinus lifts
•  Extraction
•  Implant preparations

Product Features

• Major power boost
• 3 Modes (SURG, ENDO, PERIO)
• Selectable burst mode
• 9 Programs (SURG x 5, ENDO x 2, PERIO x 2)
• Adjustable LED Light Intensity
• Automatic cleaning mode
• Feedback function
• Auto tuning function
• Dynamic link feature major power boost
• LED handpiece with 2 meter cord
• Frequency : 28 – 32 kHz
• Irrigation flow rate : 10 – 80 mL/min
• Dimension : W265 X D220 X H100 (mm)
• Power supply : AC120V or 230V 50/60Hz
• Maximum output 25 W
• Multifunctional foot control (FC-78)
• Sterilization cassette
• Basic H-S – Kit : (H -SG1, SG3, SG5, SG6D, SG7D, SG11 & Tip Holder)
• Handpiece stand, Irrigation tube (5 pcs) & other accessories
