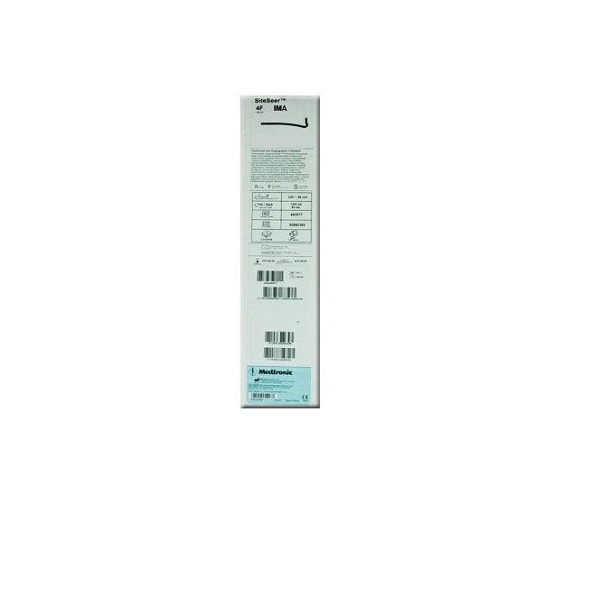

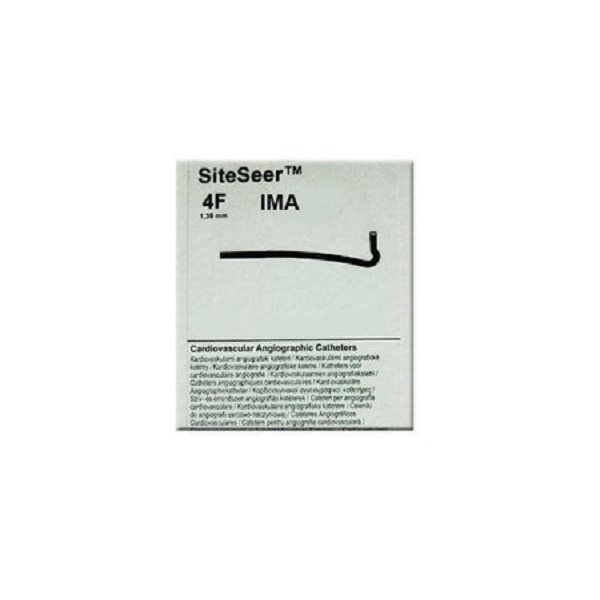

Medtronic SiteSeeR Speciality Curves Diagnostic Catheter

– Medtronic SiteSeeR is a coronary diagnostic catheter used in angiographic procedures
– It has advanced double-braided construction yields optimal 1:1 torque
– Innovative Pebax Nylon material allows for thinner walls and larger lumens in the smaller French sizes
– Atraumatic soft tip for ostial engagement
– Flexible distal segment allows for manipulation if case requires
– Flow rate: 4F Pigtail catheter = 15.5 ml/sec @ 1000 psi; 5F Pigtail catheter = 19 ml/sec @ 1200 psi; 6F Pigtail catheter = 25 ml/sec @ 1000 psi
– Outer Diameter: 4F = 0.054″; 5F = 0.065″; 6F Coronary = 0.078″; 6F Pigtail = 0.080″
– Inner Diameter: 4F = 0.042″; 5F = 0.045″; 6F Coronary = 0.055″; 6F Pigtail = 0.050″
– Available in curves: IMA, Champ, Right Coronary Bypass & Left Coronary Bypass
