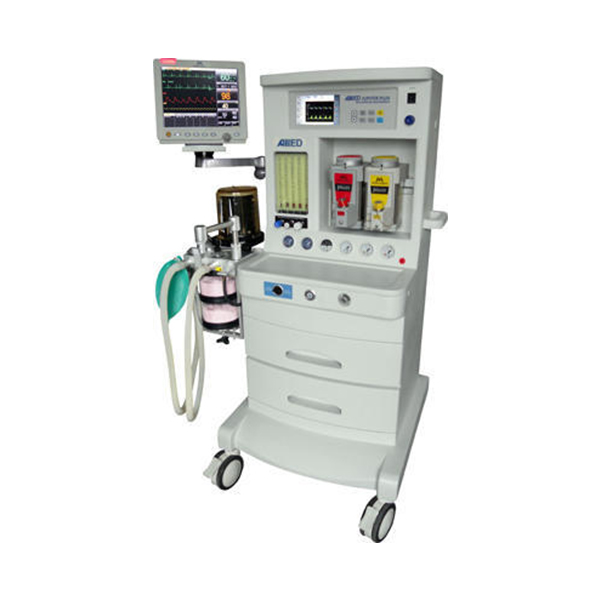

Jupiter Plus Anaesthesia Workstation

Jupiter Plus Anaesthesia Workstation

Product Features

• Rust free framework
• Deep spacious drawer units
• Dual cascaded rotameters for O₂ and N₂O as standard
• Wide monitoring shelf at eye level
• Convenient common gas outlet
• ·
• Hook for breathing circuit
• Open-Close circuit switch control

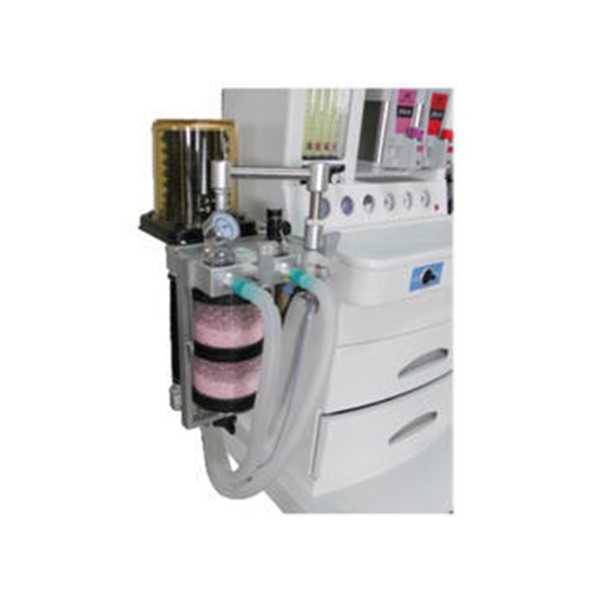

• Convenient mounting of circle absorber
• Twin Selectatec mountings for 2 Agent Specific Vaporisers
• Pin Indexed yokes Two for O₂ and One for N₂O
• Anaesthetic gas scavenging port
• Large, roller bearing, anti-static castors with front wheel brakes
• Electrical outlets for connecting monitors
• Central pipeline connections with gas specific NIST connectors
• Allied Medical Limited has developed the all new Jupiter Plus Anaesthesia Workstation keeping in mind your need of compact and user friendly design of Anaesthesia delivery system that helps you deliver attentive care to the patient rather than on the equipment. Jupiter Plus supports low-flow and minimal and extensive ventilation capabilities all packed in slim and ergonomic design.

Optional Features

• Calibration range : 0 to 5% and 0 to 8% set by using a Laser Refractometer, Agent Capacity: 250 ± 25ml
• Easy to turn dials with safety lock to prevent accidental turn-on
• Agent specific vaporisers designed to provide constant output set by user
• Interlock mechanism to lock in series with other vaporisers
• Individually calibrated for specific anesthetic drug
• Available in Screw fill, Keyfill or Quik Fil®
• Available for Halothane, Sevoflurane and Isoflurane.

Integrated Ventilator

Allied Jupiter Plus has an in-built ventilator incorporating simplicity with all the advantages of a modern ventilator. It is microprocessor based sophisticated Anaesthesia Ventilator that provides optimum patient care in a quick to learn conventional design; offering easy handling, comprehensive patient care with enhanced performance, efficiency and safety.

Anaesthesia Ventilator is an electronic time cycled compact ventilator with integrated patient alarms for safety.

• High-Luminance 7” TFT colour display
• Pneumatically driven electronically controlled combines sophistication and ease of use
• Suitable for Adult to Paediatric use
• Standard ventilation modes – CMV & Manual
• Optional ventilation modes – SIMV, A/C, SIGH
• Dynamic Compliance Monitoring
• PEEP monitoring
• FiO₂ Monitoring
• Adjustable Inspiratory time, Expiratory time and flow rate
• Adjustable low and high pressure alarms
• Can be used in closed circuit anaesthesia and also to drive a bains circuit
• Easy to clean detachable ascending bellows unit
• Alarms
• Low supply gas pressure
• Power failure
• Battery low/ discharged
• VT, MV High & Low
• Sustained pressure
