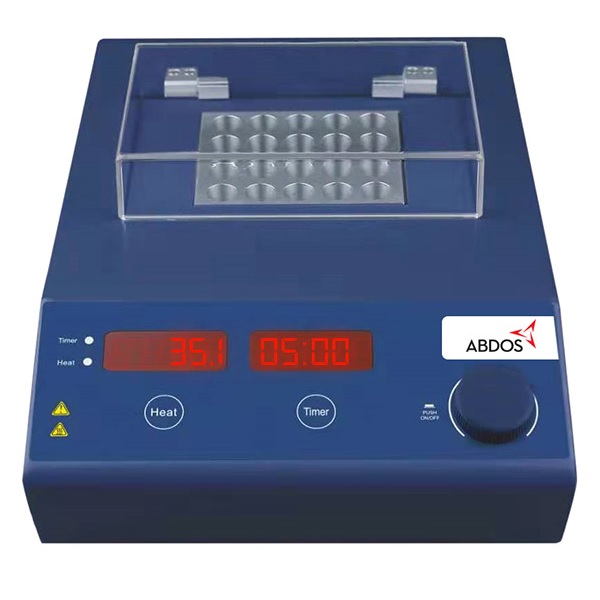

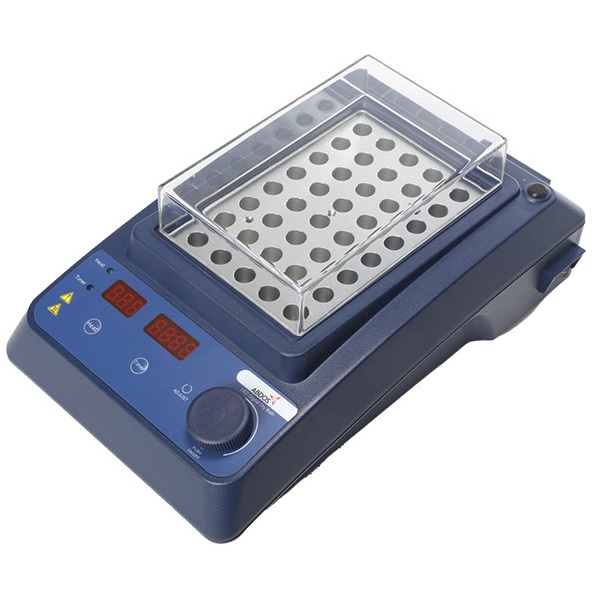

HOTBLOCK – LED Digital Dry Bath

• ABDOS-LED Digital Dry Bath Heaters are available in single and dual block configurations and provide a broad temperature range up to 150°C, which makes them useful for a variety of applications in molecular biology, histology, clinical, environmental, and industrial laboratories.
• They have been designed to incorporate the best combination of features including block capacity, dual displays, and an external temperature probe that gives life science researchers the confidence and efficiency they need when working with precious lab samples.
• This is ideal for including melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture and media tests, coagulation, tests, blood urea nitrogen determinations and in-situ hybridizations.

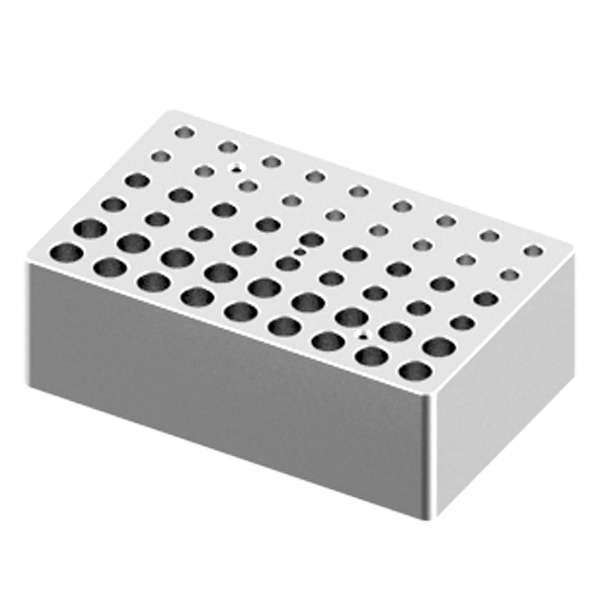

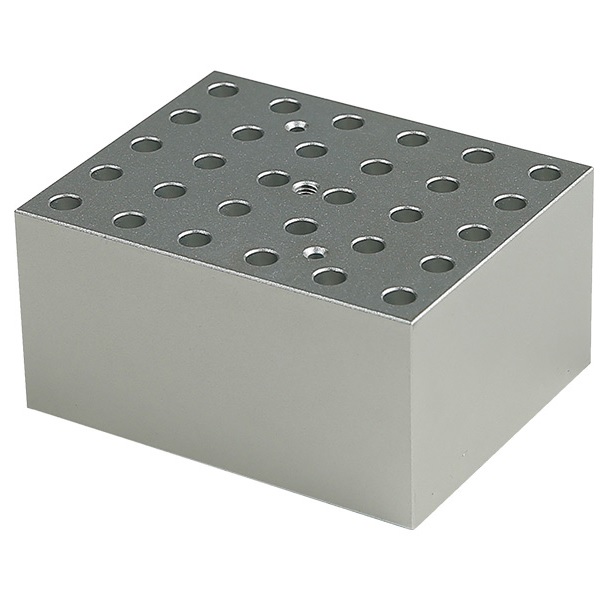

• The blocks are precision machined to match the conical size and shape of 0.5, 1.5, 2.0, 15 and 50ml tube sizes, providing unsurpassed temperature transfer. Assorted blocks are available for compatibility with nearly all common laboratory tubes and plates.
• Various optional blocks are available for best performance.
• Protection class according to DIN EN 60529.

Specifications

• CE certified : Yes
• E11330 E11360 E11370 E11380 E11390
• Voltage
• 220-240V 220-240V 220-240V 220-240V 220-240V
• Frequency 50-60Hz 50-60Hz 50-60Hz 220-240V 220-240V
• Adaptor block material Aluminium Aluminium Aluminium Aluminium Aluminium
• Maximum heating rate 5.5°C/min 5.5°C/min 5.5°C/min 5.5°C/min 5.5°C/min
• Temperature range Room Tempearture
• +5-120°C Room Tempearture
• +5-105°C Room Tempearture
• +5-105°C Room Tempearture
• +5-105°C Room Tempearture
• +5-105°C
• Heating temperature Range 25-120 25-105 25-105 25-105 25-105
• Temperature Setting Range ±0.5°C 25-90 : ±0.3
• 90-105 : ±0.6
• 25-90 : ±0.3
• 90-105 : ±0.6
• 25-90 : ±0.3
• 90-105 : ±0.6
• 25-90 : ±0.3
• 90-105 : ±0.6
• Temperature Control
• accuracy ±0.5 ±0.2 ±0.2 ±0.2 ±0.2
• Temperature Uniformity @
• 37oC – Yes Yes Yes Yes
• Sound Alarming Function Yes Yes Yes Yes Yes
• Timer 1 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min
• Time setting range Continuous/timed
• operation Continuous/timed
• operation Continuous/timed
• operation Continuous/timed
• operation Continuous/timed
• operation
• Operation type – Yes Yes Yes Yes
• External Sensor – Yes Yes Yes Yes
• USB Interface 175 x 220 x 85mm 290 x 210 x 120mm 290 x 210 x 120mm 290 x 210 x 120mm 290 x 210 x 120mm
• Dimension (W x D x H) 5-40°C 5-40°C 5-40°C 5-40°C 5-40°C
• Permissible ambient
• temperature 80% 80% 80% 80% 80%
• Permissible humidity
• Protection Class IP21 IP21 IP21 IP21 IP21
