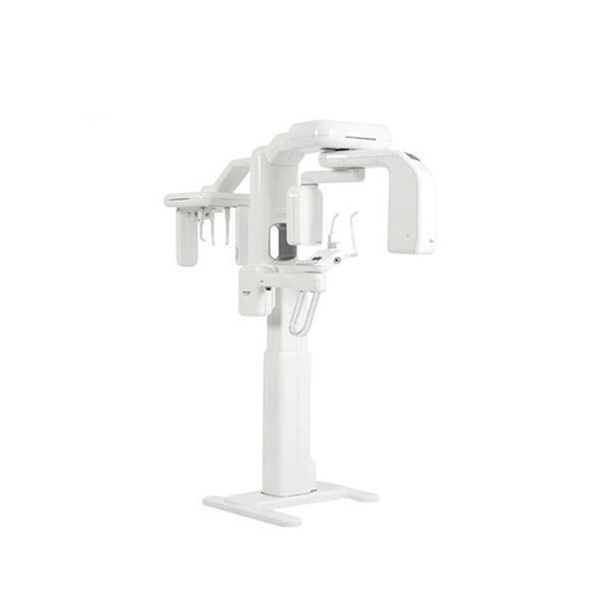

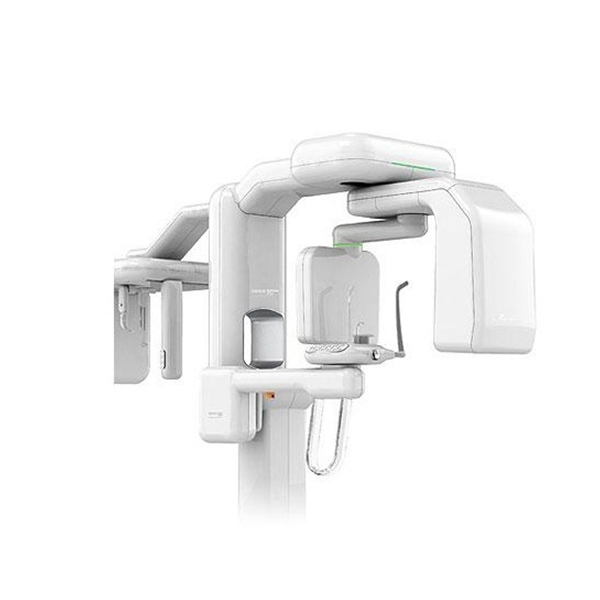

Genoray Papaya 3D Plus CBCT with Ceph


SKU: MP22898

Product Details:

Minimum Order Quantity 1 Unit
Model CBCT with Ceph
Application Clinical, Hospital
Operation Mode Electricity
Brand Genoray
Automatic Grade Automatic
Color White



Genoray CBCT With Ceph (Without Computer System & UPS)



The combination of 3D CT, Panoramic and Cephalometric (optional), to meet all diagnostic needs, The versatile imaging capability provides the user with accurate information for implant planning.

Product Features:

  • 19 FOV – 3.5×4 to 14×14 (CT)
  • World class Endo image quality (75 Micron Voxel)
  • 7.7 sec Fast Scan for 3D image
  • Dedicated sensor for CT, Ceph Pano
  • Scout Mode – avoid positioning errors
  • IPad App



Technical Specifications:

  • Exposure Time: Panoramic 9 ~ 17 sec, Cephalometric 4 ~ 12 sec, CT 7.7/14.5 sec
  • FOV: Φ35 x 40mm ~ Φ140 x 140mm (19 programs available)
  • Voxel Size: 75~400 μm adjustable
  • Focal Spot: 0.5mm
  • Target Angle: 5º
  • Tube Voltage: 60 ~ 90kV
  • Tube Current: 4~12 mA
  • Line Voltage: 220V, 50/60Hz

Sensor Specifications:

Pixel Pitch:

  • CT: 100 x 100 μm
  • Panoramic: 75 x 75 μm
  • Cephalometric: 75 x 75 μm

Active Area:

  • CT: 100 x 100 μm
  • Panoramic: 152 x 6.45 mm
  • Cephalometric: 228 x 6.45 mm
  • Model: CBCT with Ceph
  • Usage : Hospital ,Clinical , Laboratory
  • Brand: Genoray
