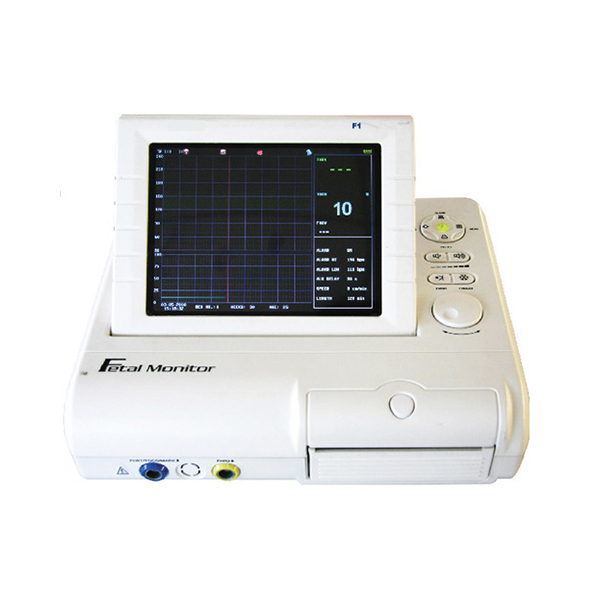

Fetal Monitor

Product Feature

• light weight, space-saving, easy to use
• 8.4” LCD screen, folding 60 degree
• display waveforms and digitals simultaneously
• FHR 120-160 mormal area highlight
• 12 hours data and waveform storage and review
• FHR upper and lower limit alarm
• twins monitoring function option
• high sensitive 9 elements 1MHz pulse doppler transducer
• built in high resolution and long life printer
• built in PC network can be connected to the central monitoring system

Specifications

• Display 8.0” color LCD display
• Recorder thermal printer
• Record paper Z-fold thermal paper
• Printing width 112mm
• Effective printing width 104mm
• FHR upper and lower limit alarm
• Printing speed 1, 2, 3cm/min
• Record message data, time, TOCO trend graph, paper speed FHR type, FHR trend graph etc
• Interface RJ 45 interface

FHR

• Technique ultrasound pulse doppler and auto correction
• Ultrasound frequency 1MHz
• FHR range 50-240bpm
• Resolution 1bpm
• Accuracy ± 2bpm

TOCO

• Range 0-100%
• Resolution 1%
• Non-linear Error =± 10%
• Zero Control manual

Fetal Movement

+ Manual fetal movement mark

Power Supply

AC 100-240v, 50 / 60Hz

P max = Optional

Twins Probe
