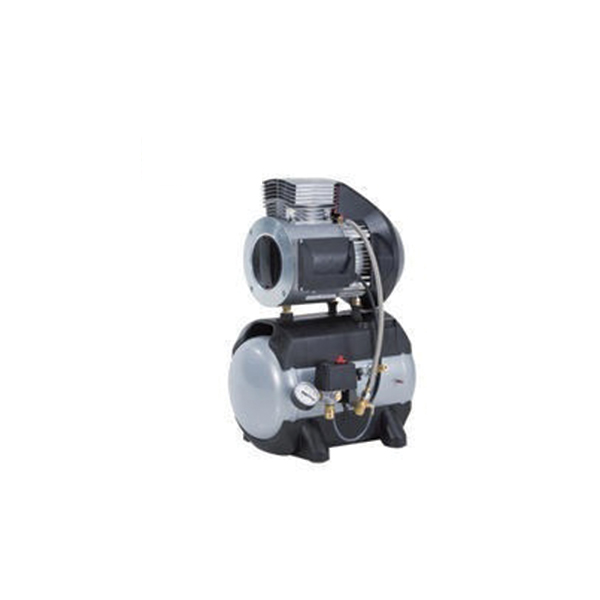

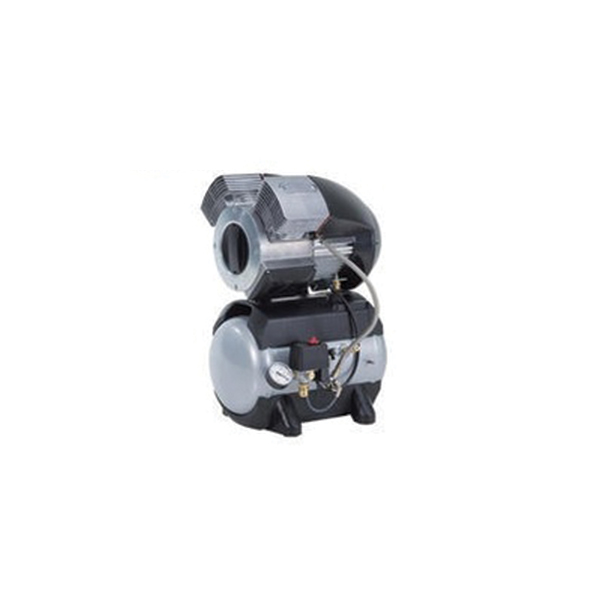

Durr Dental Compressor – Tornado

Excellent quality technical design features have set global standards! Tornado is one of the quietest compressors for dentistry – it is extremely powerful. The aerodynamic ventilation fan hood around the compressor unit ensures quiet running, this improves the comfort of dentist patient.

Features:

• 100% continuous operation possible
• State-of-the-art dry-air system – thanks to “MEMBRANE TECHNOLOGY”
• Antibacterial inner tank coating
• Approx. 15% less energy consumption
• Individual voltage variants for easy installation

Robust and long-lived – Designed for continuous operation:

• All important functions are combined in a multifunctional mono-block cylinder. The central intake filter in its closed crankcase prevents dirt particles from entering the compressor unit.

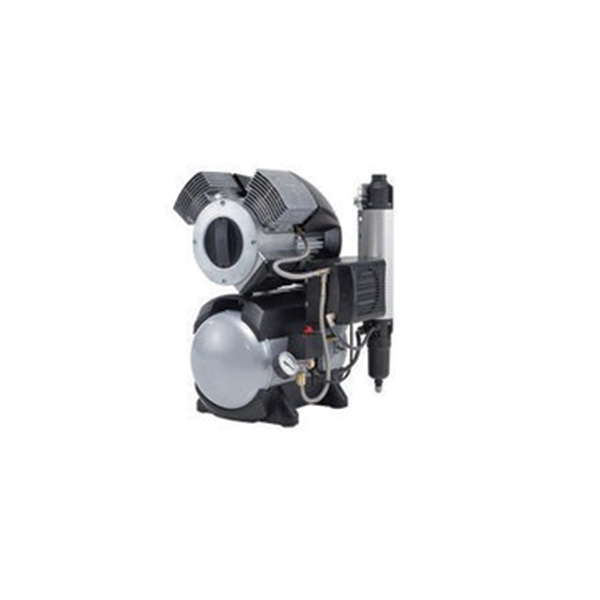

Membrane – drying unit – patented technology by Dürr Dental:

• Unlike traditional drying procedures for dentistry, the pressure dew point at 40°C is a constant ≤ 5°C. There is no risk of condensed water building up in the tank pressure lines.

Antibacterial inner tank coating protection against infections:

• The inside of Dürr Dental compressors is coated with a special antibacterial material. The fine coating is used to create a germ-reducing effect prevents corrosions. Silver nanoparticles block the enzymes that enable bacterial metabolism.chnical Specifications:

  Voltage (V)	230 (1~)
  Frequency (Hz)	50
  Cylinders	1
  Flow rate at 5 bar1) (l/min)2)	67
  Tank content (l)	20
  Pressure range3) (bar)	6–7.8
  Noise level4) [dB(A)]	64
  Dimensions (H x W x D cm) without membrane-drying unit with membrane-drying unit	66 x 48 x 37 66 x 49 x 43
  Weight (kg) without membrane-drying unit with membrane-drying unit	32 38
