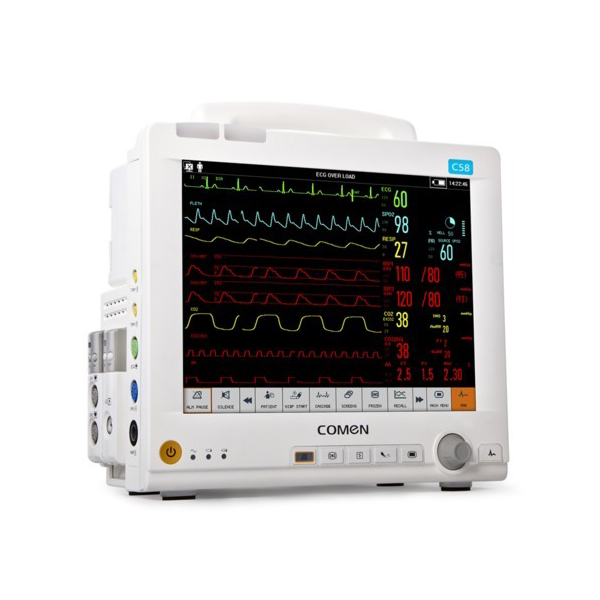

Comen Cardiovascular Monitor C100

MPIN: MP22090

Product Description

Specialized Cardiology Monitor
Modular Monitor+ VCG Apparatus+Telemetry Monitor
12inch LCD touch screen
Functional modular slot × 2
215 mm width printer
Standard :12Lead ECG, Comen SpO2 ,NIBP,HR,PR,TEMP, ECG Diagnose 216mm printer
Optional : 4-IBP , CO2 , AG ,ICG,C.O. ,C100A , Masimo, Nellcor.
In CCU, both monitor and ECG are essential, the medical staff is searching for this 2in1 solution through
the ages. Comen has same idea. How to make a monitor accompany with electrocardiograph machine?
More than 200 R&D engineers and took 720 day and night, Comen done it.
C100 Specialized Cardiovascular Monitor

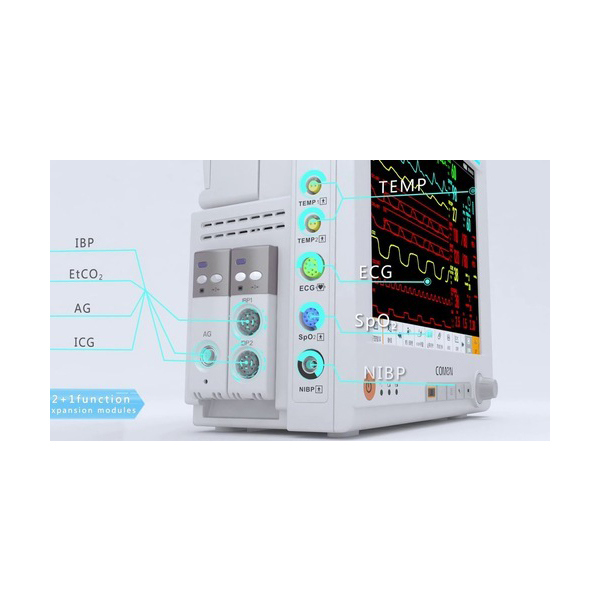

It is a modular monitor.
2+1 modular slots, 2 functional modular slots, 1 printing modular slot
EtCO2/IBP/C.O./AG/BIS/ICG module extendable
It is an ECG machine.
Powerful ECG diagnostic function
YY0782-2010 (standard specific requirements for ECG machine) certified;
Pass YY0782-2010 ECG Machine Specialized Standards;
Advanced performance: input impedance≥50MΩ, polarization resistance voltage:≥±650mV;
Common mode rejection ratio:≥105dB, time constant:≥5S;
122 kinds of arrhythmia analysis; 12-lead ECG automatic measurement and interpretation;
72 hours” full disclosure 12-lead ECG waveform review and
ECG interpretation system;
Shortcut key for ECG, one key switch between the monitoring mode and the ECG mode;

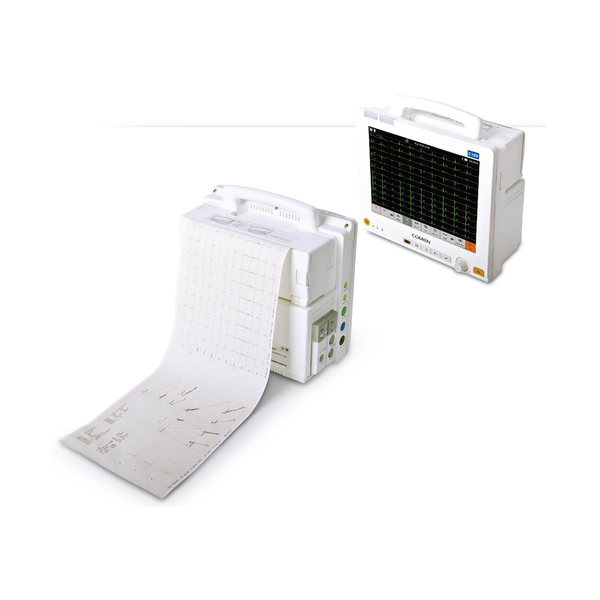

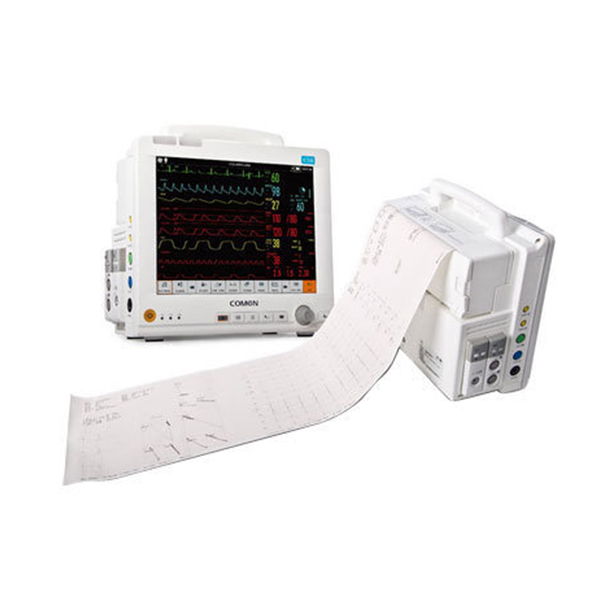

216mm modular printer; synchronous printing of 12-lead ECG.

It is a VCG diagnostic apparatus.
Use Wilson lead. Integrated VCG achieves fully ECG measurement, which can effectively avoid misdiagnosis and
provide more comprehensive solutions to complex and abnormal ECG signals, in order
to improve abnormality diagnosis accuracy.
