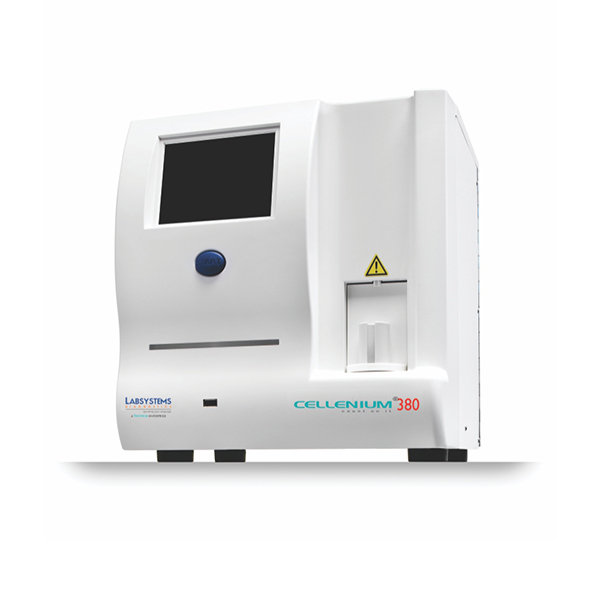

Cellenium 380

Double chamber 3 part differential Hematology Analyser

Benefits

Accurate and Precise results

Proven impedance measurement technology with advanced agging algorithms

Clog detection and prevention with automatic system cleaning processes

Comprehensive 22 parameter CBC with 3 histograms

User friendly and easy to operate

Easy to use high resolution touch screen with multi-language menu

Recording of sample and quality control information is fast and efcient

4 USB ports allow simple connection with external devices such as a host computer or an external printer

Advanced software package providing comprehensive QC statistics

Operator safety

Unique sample rotor that reduces the risk of biohazard exposure

Self-cleaning procedures minimize daily maintenance

Condence

System uses easy to understand warning messages and sample ags

Designed to use specic Trivitron reagents to deliver the highest quality results

Features

• The Cellenium 380 is a compact, bench top, 3-part WBC differential analyzer with a sample throughput of 80 tests/ hour making it our fastest analyzer today.
• The Cellenium 380 is operated via a color touch screen and an easy to follow, intuitive icon user interface. With all its features and small footprint, the system is ideal for laboratories, clinics and physician practices that are looking for a reliable, safe, accurate and easy to use the instrument.

Specification

MEASURING DATA
Throughput – 80 tests/hour
Parameters – 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD

MEASURING PRINCIPLE
Volumetric impedance method
Light absorbance for HGB measurement

REAGENTS AND SAMPLING SYSTEM
Samples
Sample volume – 25 µl of whole blood in normal 3-part mode, 50 µl of pre-diluted blood
Sampling method -open tube system with automatic sample rotor
Calibration – manual or automatic
Reagents
Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse
Clinreact•ECO Reagent Pack:up to 145 measurements

QUALITY CONTROL
Separate QC database
Levey-Jennings graphs

MEASUREMENT
2 counting chambers
Aperture diameter – 70 µ (RBC/PLT) and 100 µ (WBC)
Clog prevention – high-voltage burst on aperture in each analysis cycle and high pressure back-flush
Cleaning procedure – high-voltage burst of the aperture, high-pressure back-flush, chemical cleaning of the apertures

TECHNICAL FEATURES
Data capacity – 10,000 results, including RBC, PLT, and WBC 3-part histogram
Host computer interface – USB B port
Data back-up method – USB mass storage device
Software upgrade method via USB A port using USB mass storage device
Printer interface – USB with support for HP printers
Built-in thermal printer module, 56 mm wide roll paper, full report with histograms
Display 320×240 dots, high-contrast, backlit, color graphics LCD (liquid crystal display) with touch screen
External keyboard, USB keyboard
Power requirement – 12VDC, 5A, 60W max. operating power
Operating temperature – 15—30°C (59—86 °F). Optimal temperature is 25 °C (77 °F)

USAGE
User interface – easy-to-use, menu driven with touch screen, separate START button and status LED
User languages – English, Indonesian,German, Italian, French, Czech,Portuguese, Polish, Spanish, Vietnamese, Russian, Greek

DIMENSIONS
Size (Width x Depth x Height): 32,0 cm x 26,0 cm x 36,5 cm 12.6 in x 10.2 in x 14.4 in
Weight: 12 kg, 26.4 lbs
