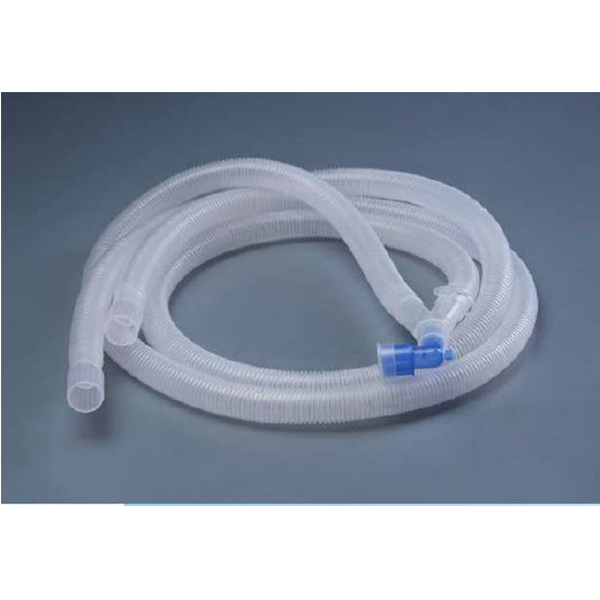

State of the art breathing circuits that help deliver oxygen, remove carbon dioxide, and deliver inhalational anaesthetic agents to patients in an efficient and safe manner. All breathing circuits are available in a wide range of configurations.
Features:
- Extremely flexible and crush – proof tube thereby emliminatingany risk of interruption in the ventilation procedure
- Tube diameteris constant whateverthe curvature radius ofthe circuit
- Smooth bore prevents condensation build – up which reducesbacterial growth
- Tube is totally transparent, so the circuit can be constantlymonitored
- Tube features soft flexible connectors that ensure a perfectseal
Specification
Technical parameters | Header 2 | Header 3 |
---|---|---|
Connections | 22M/15 F patient connection and22 F ventilator connection | 22M/15 F patient connection and22 F ventilator connection |
Luer port | 7.6 mm on Y connection and4.3 mm on elbow connection | 7.6 mm on Y connection and4.3 mm on elbow connection |
Corrugated tube diameter | 22 mm | 15 mm |
Length | 150 cm | 150 cm |
Water trap volume | 40 ml | 40 ml |
