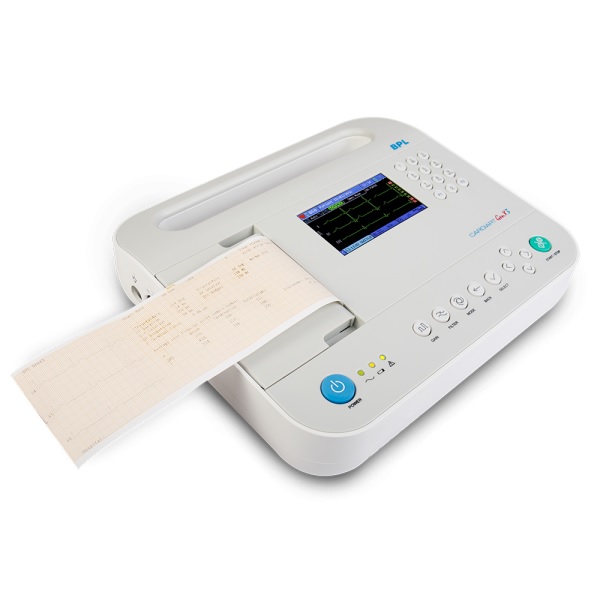

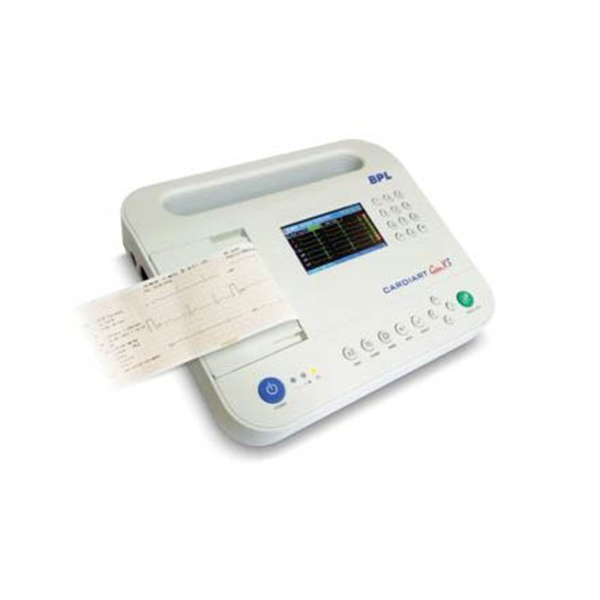

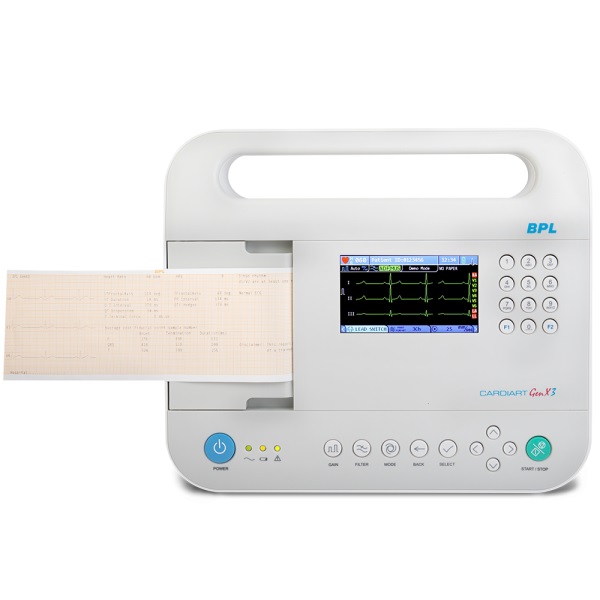

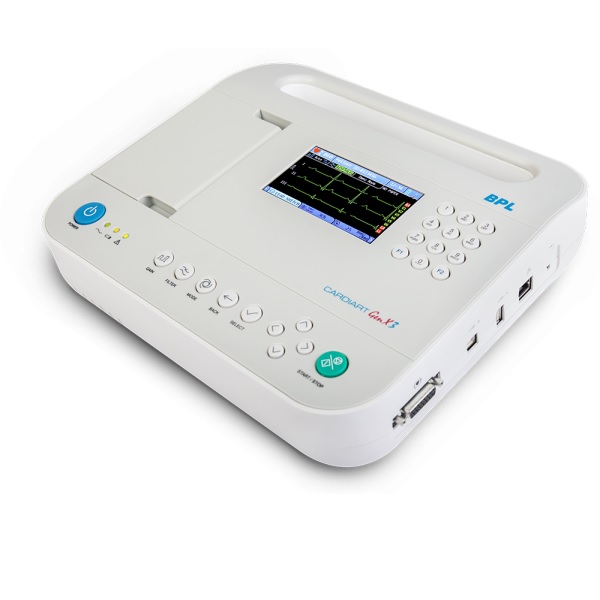

BPL Cardiart Genx3 Ecg Machine

MPIN: MP81226


A new-generation 3-channel ECG recorder that comes with the advanced Glasgow ECG Interpretation algorithm, Cardiart GenX3 gives you the choice to select the darkness of the trace, has soft color-coded silicone function keys for one-touch operation and PC Interface for real-time data transfer & data management – all combined inside a compact, easy-to-use ECG device.


Ask for Quote

Product Description

  • Three Channel ECG Recording with unique trace darkness control – Print on 80mm Wide Paper with selectable trace darkness feature
  • Equipped with Glasgow ECG Interpretation Algorithm – gender, age & race specific advanced ECG Analysis & Interpretation
  • Wide 4.3 inch 65K Color TFT display to observe 12-lead, real-time ECG waveforms
  • Full disclosure view of ECG Analysis on TFT display
  • Color-Coded Silicone function keys for easy operation with alphanumeric keypad for entering patient & hospital information
  • Auto & Manual modes with selectable rhythm
  • In-built PDF Converter for PDF Transfer of ECG via USB & page save features
  • ECG Data Export feature to multiple formats enables paperless workflow
  • Direct print on color A4 USB printers in different print layouts
  • Internal record storage for up to 250 ECGs
  • Built-in Li-Polymer Ion battery for safe and energy-efficient operation – Recharge time <3½ hoursFEATURES
  • Three Channel ECG Recording with trace darkness control.
  • 4.3-inch color LCD screen.
  • Glasgow ECG interpretation algorithm.
  • 12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000Hz sampling frequency.
  • Alphanumeric keypad with soft silicone keys.
  • Full disclosure view of ECG analysis on display.
  • Internal storage 250 ECGs and can be enlarged by USB
  • Li-ion rechargeable battery – 250 ECG’s.
  • Connectivity: supports USB Printer, optional FTP, Export selected record(s) in HL7 format.
  • Optional: Real-time ECG transfer to PC through USB

CONTENT OF BOX

  • ECG Cable- 1 No.
  • Bulb Electrode- 1 Set
  • Clamp Electrode- 1 Set
  • Gel Bottle- 1 No.
  • Power Cable- 1 No.
  • Earthing Cable- 1 No.
  • User Manual- 1 No.
