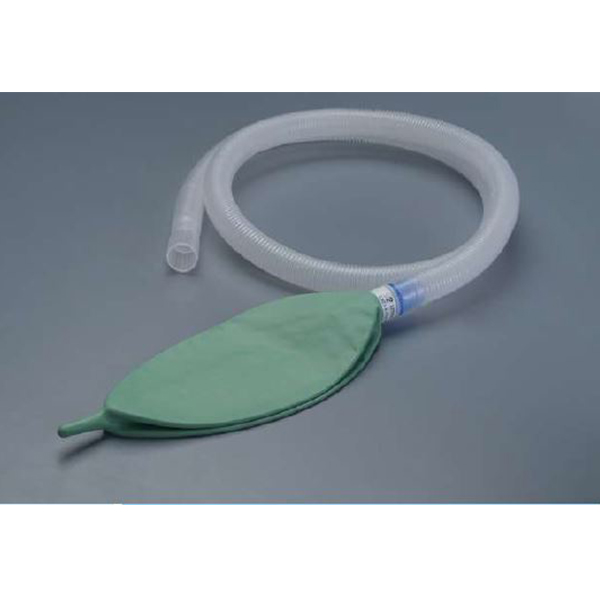

Bain CircuitCircuit With Breathing Bag on 1.5m Extended Limb

The Bain Circuit uses a high fresh gas flow to deliver anaesthetic gases to the patient and to wash out the exhaled CO2.The construction of the Bain Circuit uses an inner tube which delivers fresh gases to the patient and an outer corrugatedtube that transports the exhaled gases. This system ensures there is no rebreathing of the exhaled gases when the correctflow rate is set, this is dependent on the patient’s minute ventilation.

Features:

• High sensitive APL valve for uniform pressure response
• High visibility sticker on APL valve with clear position

  indications

• Coloured oxygen tubing for better visibility
• 30 M scavenging port for safely handling outlet gas
• 22 F machine port with 22 M adaptor for optional use
• Patient port standard connector 22 M / 15 F
• Patient elbow connector

Specification

• Peak pressure safely feature ensure < 60 cm H2O under 25 LPM flow
• 30 M scavenging port for safely handling outlet gas
• 22 F machine port with 22 M adaptor for optional use
• Patient port standard connector 22 M / 15 F
