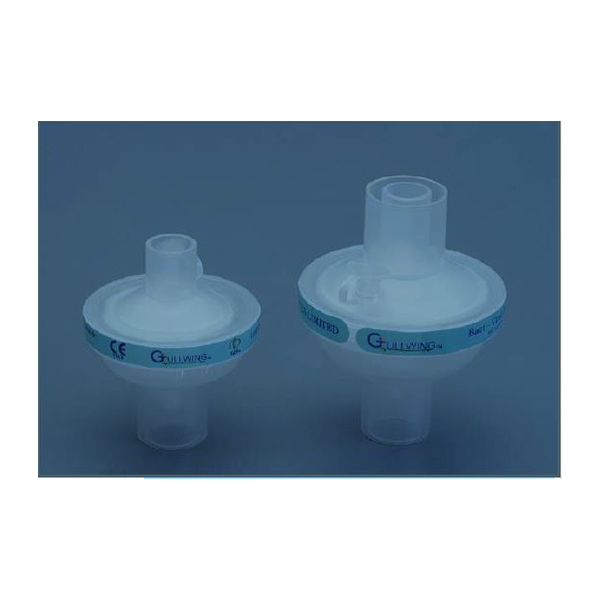

Electrostatic bacterial and viral filters to protect the patient from airborne microorganisms that may be present in inhaled air. It also safe-guards the ventilator and its breathing system from patient exhaled airborne microorganisms which helps reduce the risk of possible cross-infections.
Features
- Individually packed and ready to use
- Designed for breathing circuits and devices
- Lightweight – Low tractive force on connection
- Biocompatible material
- Transparent casing – allows easy inspection of blockages
- Low dead space – minimizes threat of rebreathing
- High quality filtration media with proven efficiency
- Low flow resistance
- ISO connectors
Specification
| Technical parameters | Adult (Code: 2120) | Paediatric (Code: 2220) |
|---|---|---|
| Filtration efficiency (Bacterial and Viral) | >99.999% | >99.999% |
| Mode of filtration | electrostatic | electrostatic |
| Tidal volume | 250-1000 ml | 75-250 ml |
| Flow resistance | <0.3kpa @60 LPM | <0.2kpa @20 LPM |
| Dead space | <52 ml | <25 ml |
| Connectors | 22M/15F, 15M/22F | 15F/22M, 15M |
| Weight | <30g | <20g |
| Luer lock port for CO2 sampling | Yes | Yes |
