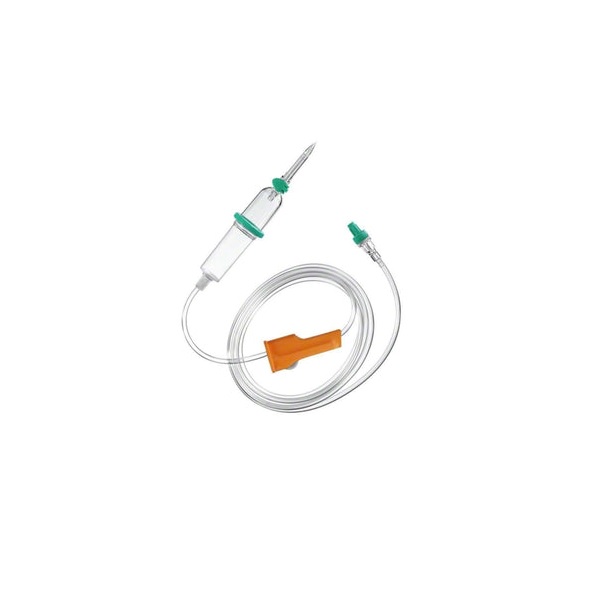

B Braun Intrafix SafeSet IV Administration Set with Neutrapur Tubing

MPIN: MP88989

Description
Store Policies

The B Braun Intrafix Safeset IV Set is a universal IV administration set with air vent for gravity infusions and pressure infusions with non-dedicated infusion pumps

The IV set comes with PVC free patient friendly Neutrapur tube. The pressure resistant is not pump-compatible.

The Neutrapur tubing is free of halogene, e.g. chlorine, free of plasticizer

The IV set has a large filter area that retains particles >= 15µm

The device can be used for all patients for which infusion therapy is prescribed. Intrafix SafeSet can be used for adults, pediatric and neonate patients.

The Intrafix IV set comes with tubing made with PVC but DEHP-free, optionally also PVC-free

Technical Characteristics:

Long drop former, 20 dr. ≈ 1 ml

Highly transparent dome design. Good to see drop forming.

Screw-tight luer-lock fitting. For safe connection to the patient access

Bacteria-tight air vent, with snap cap

Drip chamber PVC-free

Particle filter 15µm

Direction for Use

Unwrap the IV-set and check whether the green air vent cap is closed and the roller clamp is open

Spike the semirigid container/ bag

Close the roller clamp

Turn the IV-system upside down. Squeeze the drip chamber impulsively and bring fluid level up to the ring of the drip chamber

Open roller clamp. Prime the line until the end. Afterwards close the roller clamp again

Squeeze the drip chamber impulsively once again. Remove cap and connect it to the patient connector

Precaution:

Always double check level of liquid in the drip chamber. If necessary refill the drip chamber by squeezing. Roller clamp should be placed on closed position.
