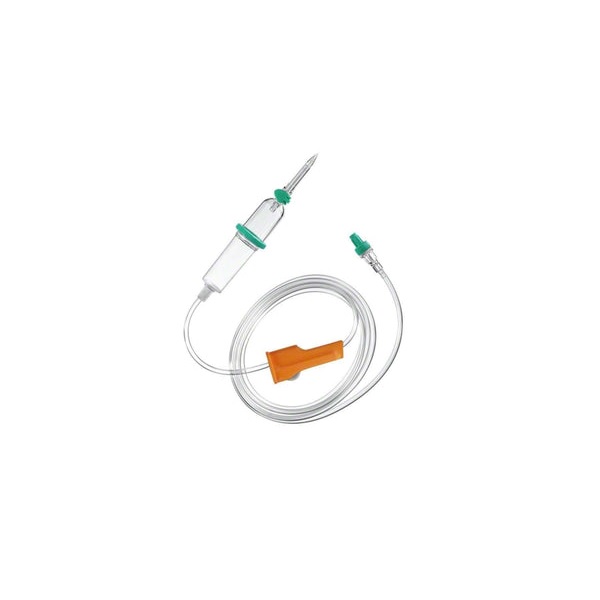

The B Braun Intrafix Safeset IV Set is a universal IV administration set with air vent for gravity infusions and pressure infusions with non-dedicated infusion pumps
The IV set has a large filter area that retains particles >= 15µm
The device can be used for all patients for which infusion therapy is prescribed. Intrafix SafeSet can be used for adults, pediatric and neonate patients.
The Intrafix IV set comes with tubing made with PVC but DEHP-free, optionally also PVC-free
It has luer-lock connector with prime stop cap which ensures automatic priming and prevents fluid from dripping out
Technical Characteristics:
Long drop former, 20 dr. ≈ 1 ml
Highly transparent dome design. Good to see drop forming.
Screw-tight luer-lock fitting. For safe connection to the patient access
Bacteria-tight air vent, with snap cap
Drip chamber PVC-free
Particle filter 15µm
Direction for Use
Unwrap the IV-set and check whether the green air vent cap is closed and the roller clamp is open
Spike the semirigid container/ bag
Close the roller clamp
Turn the IV-system upside down. Squeeze the drip chamber impulsively and bring fluid level up to the ring of the drip chamber
Open roller clamp. Prime the line until the end. Afterwards close the roller clamp again.
Squeeze the drip chamber impulsively once again. Remove cap and connect it to the patient connector.
Precaution:
Always double check level of liquid in the drip chamber. If necessary refill the drip chamber by squeezing. Roller clamp should be placed on closed position.
