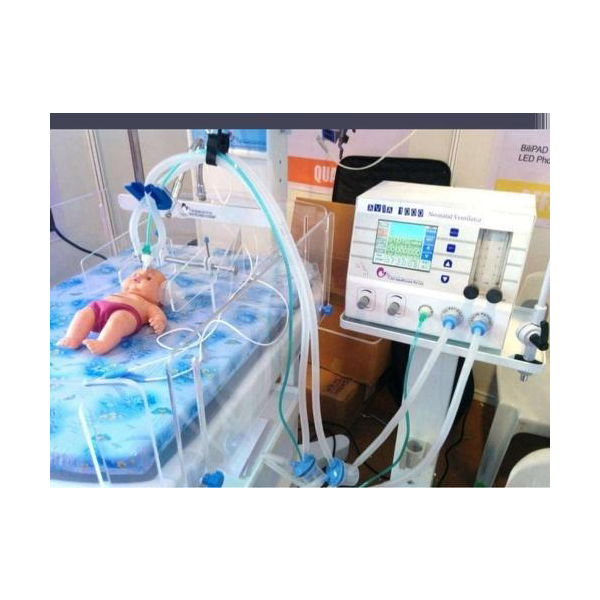

Avia Neonatal Ventilator

AVI Healthcare offers innovative range of ventilatory support to pediatric and infant patients in ICU Choice of Configuration Range of Modes and Alarms Ideal Ventilator for Primary NICU Care

AVIA 1000 is available with or without the attached Air/O2 Blender. Blender allows user to set the OxygenConcentration between 21 to 100%.

Standard model has inbuilt air and oxygen flowmeterand flow levels can be set on colour tft display Using the colour touch screen display, User can set the appropriate pressure limited ventilator mode: Assist Control, SIMV, CPAP or CMV.

Available settable parameters include PIP, PEEP, Air Flow,O2 Flow, Trigger Level, Apnea, Alarms

This ventilator has been developed as a basic ventilator for the needs of Primary Nursery

Operating ModesIt has following operating modes: CPAP, CMV, AC,SIMV

ControlsRespiratory rate – Adjustable in the range 3 – 300 cycles/minInspiratory Flow: 0.2 to 2.0 secsExpiratory Flow: 0.2 to 20 secsPIP – 0 to 80 cmH2OPEEP – 0 to 20 cmH2OAir Flow – 0 to 20 lpmOxygen Flow – 0 to 20 lpmFiO2 – 21% – 100%Trigger Mechanism – Pressure (-3 to 17 cmH2O)

Monitored Parameters:Mode, PIP, PEEP, MIP, MAP, Insp.Time, Exp. Time, Rate,Trigger level, SIMV RatioI/E Ratio, Apnea Time, Pressure Trigger

Display: Color Touch Screen TFT Display with pressure time curves and easy to use interface
