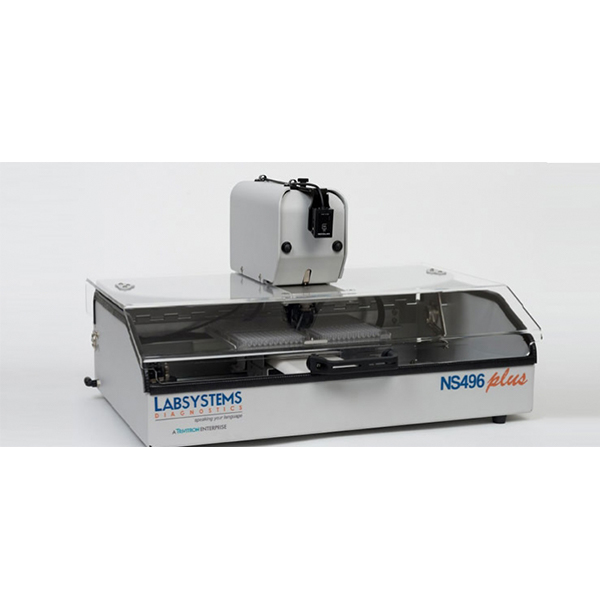

NS496 plus DBS puncher with air humidification system and clean punch mechanism designed to automate laboratory automate system and is used to punch dried blood spot samples into a 96 wellmicrotitre plates for subsequent analysis
Benefits
Main Menu

The main menu allows entry to software modules.

Access to each module is controlled using Supervisor and User level passwords.

Test Editor Module

Used to define and program individual tests.

Set punch sizes, number of disks and filling order for individual plates.

Allows individual definition of each well for sample, test or standard.

Set cleaning strikes.

Up to 10 disks per well can be specified.

Distribution Module

Used to run punching tests defined in the test editor.

Displays the current punching pattern and progress.

Shows instrument status messages for routine operation.

Configuration Module

Used to view and change the instrument configuration, preferences and options.

Change settings and calibrate the instrument during installation.

Supervisor access level is required.

Features
Integrated Barcode reader

Enables positive identification and traceability of plates, samples, controls, and standards.

Allows for traceability at all levels of the punching process, delivering unique identification information.

Quick release Punch and Die Set (mark 4)

Allows for quick and easy removal of the punch by laboratory operator, either to change punch size or for cleaning purposes.

Minimizes downtime for laboratories.

Disk Detector System

Recognizes if a disk has not passed into the receiving well and automatically responds.

Beam design for high detection reliability.

Air Humidification System

Ensures the punched disk is delivered to the correct receiving well for downstream processing and reduces the chances of well ‘jumping’.

Dedicated Cleaning receptacle

A dedicated cleaning receptacle is provided to minimize cross-contamination issues.

SKU: MP41072 Category: Tag:

Enviromental Conditions : (Indoor only)
Operating Temperature : 15oC to 35oC (59oF to 95oF)
Operating Humidity : 35 to 80 RH, non-condensing
Physical Dimension : 646 mm (W) X 432 mm (D) X 356 mm (H)
Weight : 15 kgs
Power Requirements :
Normal input Voltage : 100 -240 VAC
Normal AC Input Frequency : 50- 60 Hz
Internal Voltage : 4 A at 115V, 2 A at 240V
Internal Fusing (24 V DC) : 3 A Anti-Surge
USB Interface : Type B connection
Safety Spec : CE MDD Directive 93/42/EEC; IEC60601-1
