Product Details:
Positioning: Portable
Brand: Allied Medical
Oxygen Flush: Emergency oxygen flush switch at table level to give 35-70 Ltrs/min for emergencies
Weight: 10.5 kg
Non Return and Pressure Relief Valve: Minimises risk of back flow of gases,blows off when pressure exceeds 125 C H2O
Common Gas Outlet: Conveniently located CGO with ISO tapers for 22 & 15mm connections (CGO)
Basal flow with On and off Switch: 250 +/- 50 ml basal flow of Oxygen as soon as machine is switched on (optional)
Pipe Line Gas Inlets: Non-interchangeable screw threaded (NIST) pipeline inlets
Pressure Gauges: Large diameter,color coded gauges fitted at convenient angle for better visibility and clarity.
Selectatec Bracket: Single Selectatec Block
Breathing Circuits: Bains Circuit
Height: 470 mm
Width: 400 mm
Depth: 250 mm
Temperature: Operation 10 to 40 Degree C,0 Storage -20 to 55 Degree C
Humidity: Operation Less Than 80%,Storage Less Than 93%
Features:
Ease of use and superior functionality
Suitable for Adult and Pediatric patients
Anti-Hypoxic guard
Emergency oxygen flush
ON/OFF Switch
The fail-proof audible indication of O2 supply pressure failure
Automatic Nitrous Oxides shut off in the event of O2 failure
Colour coded NIST inlets for piped medical gases
Selectatec manifold mounting of Temperature and Flow Compensated type vaporizer
Advanced Pediatric and Adult Ventilation with a choice of ventilators (optional)
Multiple mounting possibilities
Specially designed carry case

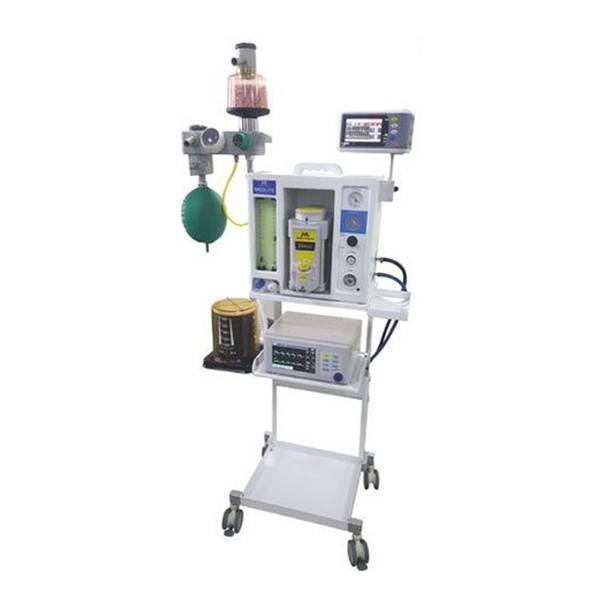

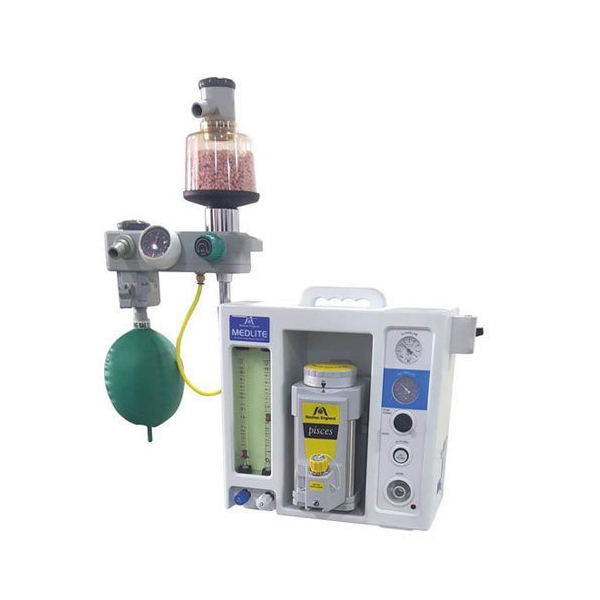

Meditec England MedLite Portable Anaesthesia System is a light-weight, compact yet feature-rich Anaesthesia System. Meditec MedLite is specifically designed to provide efficient patient care in surgical locations where space is limited, such as clinics, ambulances, disaster, emergencies, veterinary clinics and remote locations. Its intuitive design offers easy handling, comprehensive patient care with enhanced performance, efficiency and safety.
Optional Features
Circle Absorber
Portable Carry Case
Mobile Stand
Regulators
Basal Flow
Wall Mount
Ideal for use:
Operating Rooms
Veterinary Clinics
Ambulance / Mobile Clinics
Military Use
Disaster Management & Emergencies
MRI Rooms
Other Details:
02 failure warning alarm: Self-activated electro-pneumatic audio-visual warning device to indicate the drop in O2 pressure below
2.5 Bar
Anti-Hypoxic Guard: Mixing device to proportion the N2O in such a way that minimum of 25% O2 is always delivered from the rotameter.
