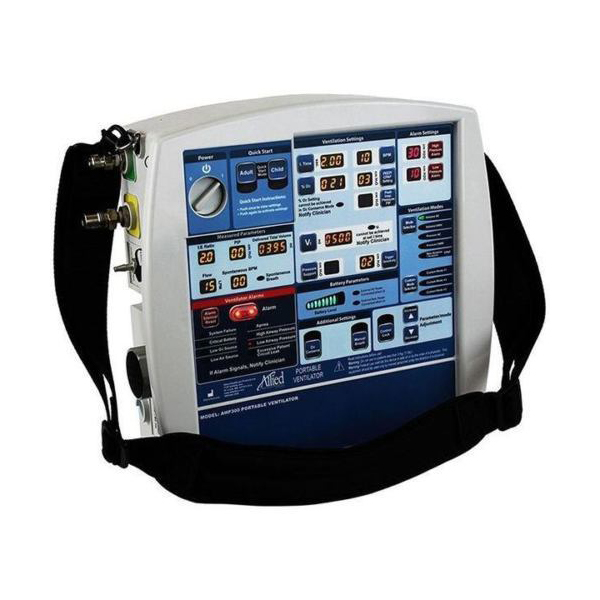

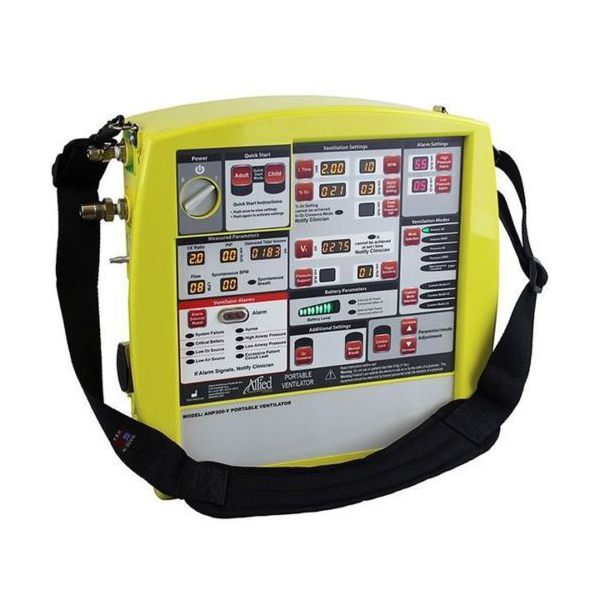

Allied Healthcare AHP300 Transport Ventilator

Product Details:

The Allied Healthcare AHP300 Transport Ventilator is an electrically controlled, portable ventilator, designed to provide emergency respiratory support by means of a face mask or tube inserted into the patient’s airway. It allows for invasive and non-invasive respiratory support with a variety of ventilation modes to choose from.

The AHP300 Transport Ventilator is intended for use in EMS (emergency medical services) environments, inter-hospital transport, and hospital facilities, by qualified critical care nurses, paramedics, and respiratory therapists. It allows flexible array of ventilation options including Pressure Control/Volume Control ventilation, SIMV/Assist Control spontaneous breath support, and stand-alone CPAP/BiLevel support.

Enhanced Ease of Use

• Quick Start Ventilation – Featuring programmable presets, the AHP300 allows trained caregivers to rapidly recall up to 5 saved ventilation protocols.
• Long Battery Life – Up to 7.5 hours on internal battery, with auxiliary battery capability for up to 21 hours of battery life.
• Oxygen Conserve Mode – Allows the use of low pressure sources (oxygen concentrator, liquid oxygen, etc.) to extend available oxygen.

Controls/Settings

Modes

• (Pressure or Volume) A/CMV
• (Pressure or Volume) SIMV
• CPAP
• Bi-Level Support (PS+CPAP) (can be programmed in custom mode)
• NIV (non-invasive ventilation) available in all modes
• 5 Programmable Quick Start Presets

Tidal Volume 40 to 2,000 ml

RR (Respiratory Rate) 0 or 5 to 60 b/min

I Time (Inspiratory Time) 0.5 to 2.0 sec

PEEP/CPAP 0 to 25 cmH2O/0 to 25 mbar

PS (Pressure Support)** 0 to 25 cmH2O / 0 to 25 mbar*

*PEEP + PS cannot exceed 25 cmH2O/mbar Operating Humidity 5 to 95% non-condensing

Flow 5 to 60 L/min (flows > 80 LPM in PS Mode, CPAP and demand flows)

Pressure Control (Target Pressure) 15 to 55 cmH2O / 15 to 55 mbar

Ptrig (Sensitivity) -5 to -1 cmH2O / -5 to -1 mbar

Manual Inflation 2 second maximum

FiO2 .21 to 1.00

Maximum I Time 2 seconds

Flow Wave Pattern Square or descending**

** Based on mode selected

Auto Lock Function ON / OFF

Remote Alarm Option Normally Open/Closed
