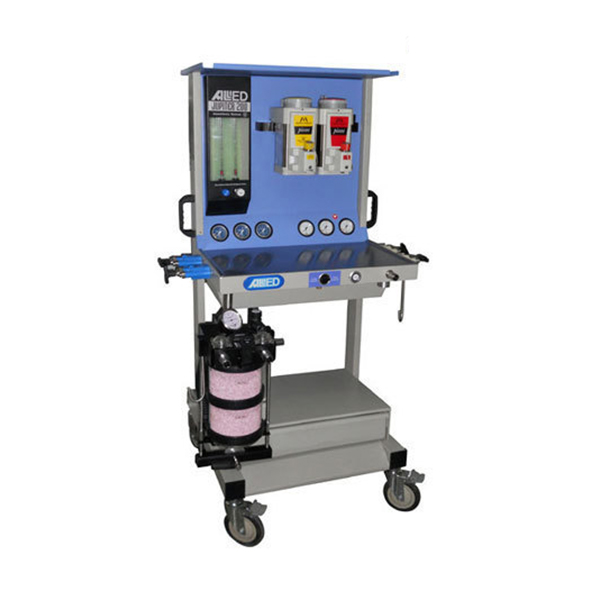

Allied Clinical Use Anaesthesia Machine

Product Details:

Brand: Allied Medical

Hypoxic Guard: Yes

Cylinder Yokes: 1 O2 + 1 N2O

Rotameter Tubes: 2 (1 O2 + 1 N2O)

On and Off Switch: Optional

Basal Flow: Optional

Pipeline Inlet: Yes (NIST)

O Gauge: 2

N O Gauge: 2
Specification

Features:

• Deep and spacious drawer units & convenient footrest
• Wide monitoring shelf at eye level with securing a provision
• Convenient swivel common gas outlet
• Hook for the breathing circuit
• Wipe-clean stainless steel table top
• Auxiliary high-pressure Oxygen outlets.
• An extended platform at rear for two 10 Ltr water capacity cylinders* (optional)
• Open / Close circuit switch control
• Pin indexed yokes for O2 & N2O
• Convenient mounting of circle absorber
• Choice of a back bar for SELECTATEC or Cagemount vaporizers
• Active/passive anesthetic gas scavenging interface and suction (optional)
• Integrated rear bumper/ side handle for improved maneuverability
• Large, roller bearing, anti-static castors with front wheel brakes

Safety Features:

• Hypoxic guard as the standard feature with all machines
• Emergency oxygen flush
• Alarm to provide the audible indication of O2 supply pressure failure
• Nitrous Oxides shut off in the event of O2 failure
• Colour coded internal pipework
• Pipelines with gas selective connectors for O2, N2O & Air

Other Details:

• Vaporiser Mounting Space: Dual
• Selectatec Mounting: Optional
• Circle Absorber: Optional
• Bulk Cylinder Platform: Optional
• Auxiliary Flowmeter: Optional
• Stainless Steel Body: Optional
• Electrical Distribution Panel: Optional
• Venturi Suction: Optional
• Air Entrainment Valve: Optional
• Air/N O Interlock: Optional
• MOX/MNO Conversion kit: Optional
